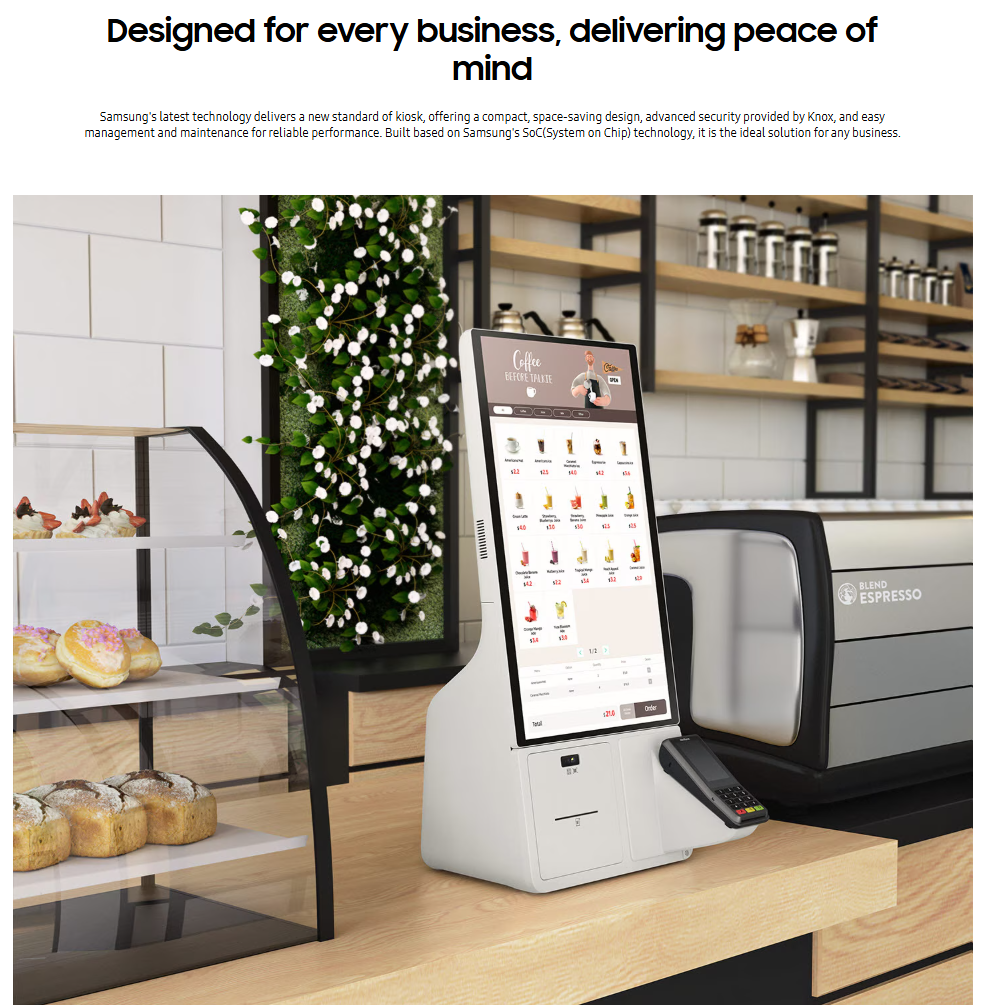

24″ Smart Signage Samsung Kiosk – LH24KMATBGCXEN
- Compact and modern design
- Modular functionality to support any payment type
- Versatile solution for any scenario
Technical Specifications
Display | |
Diagonal Size | 23.8″ |
Panel Type | ADS |
Resolution | 1,920 x 1,080 |
Pixel Pitch (HxV, mm) | 0.2745 x 0.2745 mm |
Brightness (Typical) | 250cd(Typ, w/o glass) |
Contrast Ratio | 1000:1(without glass) |
Viewing Angle (H/V) | 178/178 |
Response Time | 14ms |
Color Gamut | 72% |
Glass Haze | 25 (w/o glass) |
H-Scanning Frequency | 48~75KHz |
Maximum Pixel Frequency | 594MHz |
V-Scanning Frequency | 56~84.5Hz |
Contrast Ratio (Dynamic) | Mega |
Operation Time Support | 16/7 |
Connectivity | |
HDMI In | 1 |
USB | 1 |
RS232 In | Yes |
RJ45 In | Yes |
WiFi | Yes |
Power | |
Power Supply | AC100-240V 50/60Hz |
Power Consumption (On Mode, W) | 49.5 W |
Power Consumption (Sleep Mode, W) | 0.5 W |
Dimension | |
Set Dimension (WxHxD, mm) | 547.9 x 334.4 x 48.8 mm |
Package Dimension (WxHxD, mm) | 620 x 419 x 122 mm |
Weight | |
Set Weight | 4.4 kg |
Package Weight | 5.4 kg |
Operation Conditions | |
Temperature | 0℃~40℃ |
Humidity | 10 ~ 80%, non-condensing |
Mechanical Specification | |
Bezel Width (mm) | UD: 17.9 / LR: 9.4 |
Frame Material | Non-Glossy |
Optional Feature | |
Touch | Yes |
Stand | Yes |
Touch | |
Touch Technology | Capative |
Certification and Compliance | |
EMC | Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005 |
Safety | CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950 |
