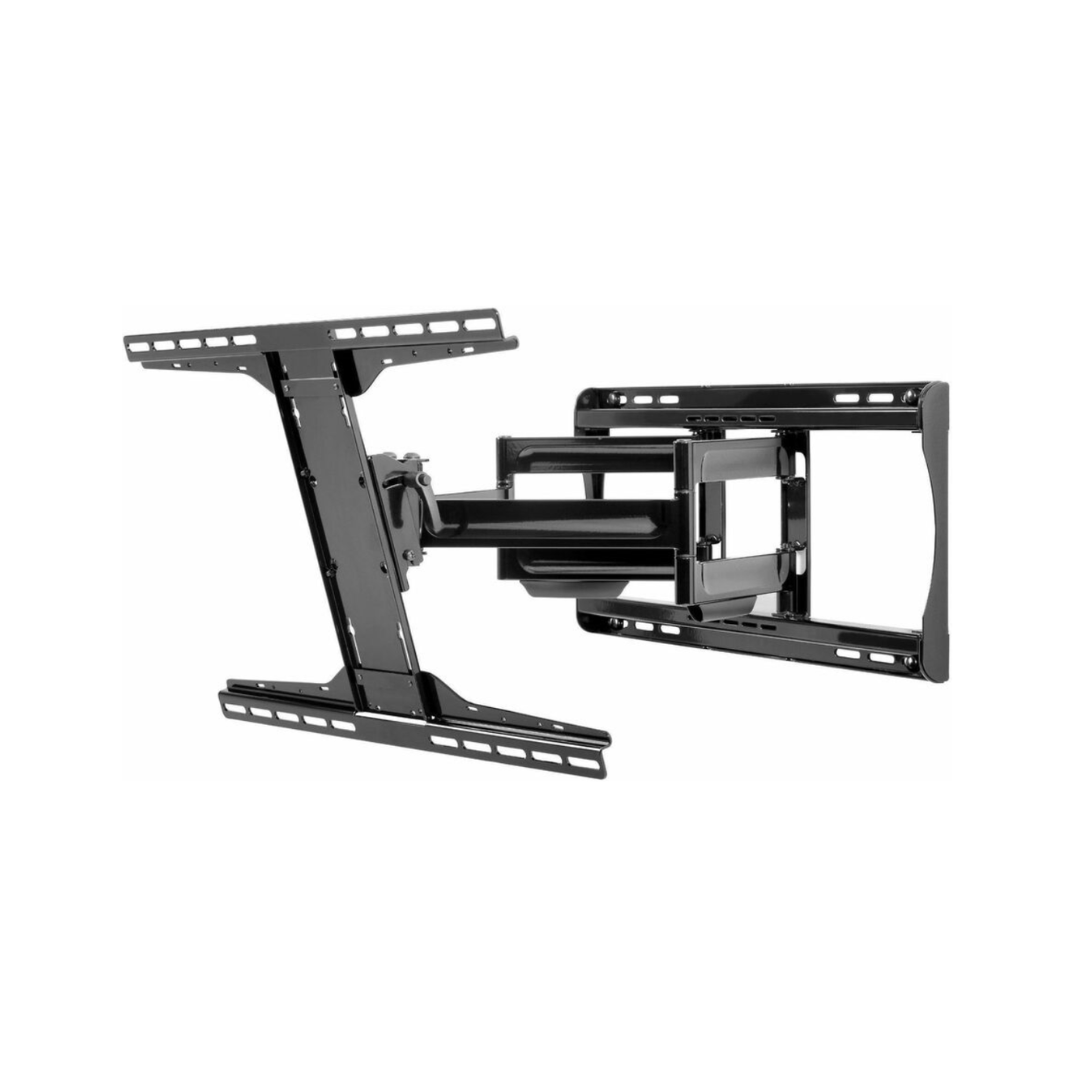

Peerless-AV Paramount™ Articulating Wall Mount for 39″ To 90″ Displays

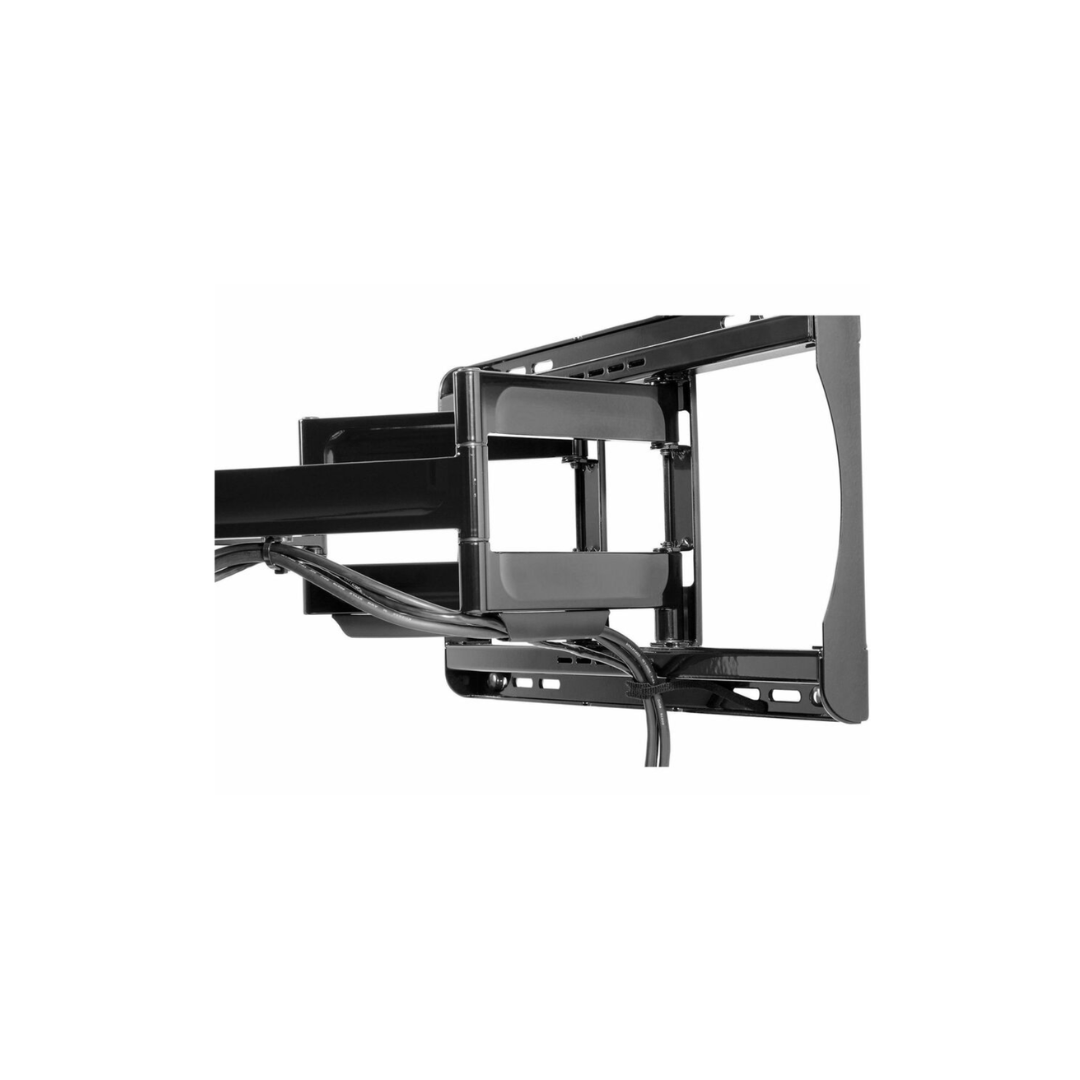

The Paramount™ series wall mounts provide versatile and multi-functional features. With PA762, extend the display up to 21.32″ (542mm) or fully-retract it to just 3″ (76mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Product Features
- Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns
- Extends 21.35″ (542mm) from the wall
- Retracts 3.00″ (76mm) to save space

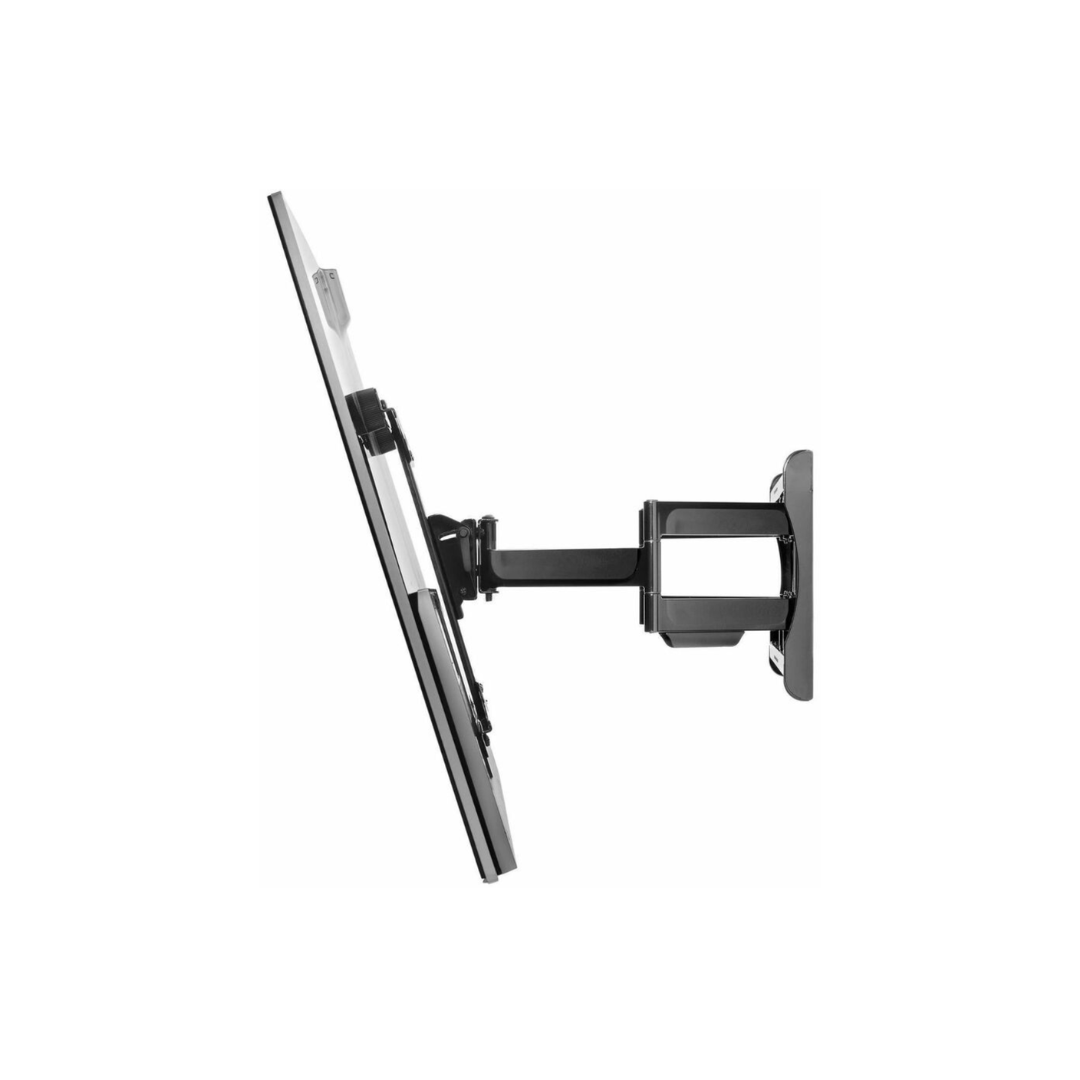

- +15/-5° of tilt for optimal viewing angles
- Up to 90 degrees of pivot allows for perfect display positioning
- Design is UL listed and tested to four times stated load capacity
- Includes all necessary wall and display attachment hardware
Technical Specifications
| Product Information | |
| Device Supported | Display |
| Maximum Load Capacity | 68.04 kg |
| Minimum Screen Size Supported | 39″ (99.06 cm) |
| Maximum Screen Size Supported | 90″ (228.60 cm) |
| Minimum Adjustable Depth | 7.62 cm (3″) |
| Maximum Adjustable Depth | 54.10 cm (21.30″) |
| Features | Retractable Handle +/- 5° Roll Ratcheting Handle Reduced Glare Hook-and-Hang Design +/- 90° Pivot Lockable Tilt Flexible |
| Mount Pattern Compatibility Type | Universal |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 15° |
| Mount Function | Articulating Tilt Adjustable Cable Management Swivel Pivot Wall Mount |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
| Physical Characteristics | |
| Colour Family | Black |
| Product Colour | Gloss Black |
| Finishing | High Gloss
Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 100 up to 600 x 400 mm |
| Form Factor | Wall Mountable |
| Height | 42.55 cm (16.75″) |
| Width | 61.93 cm (24.38″) |
| Depth | 54.15 cm (21.32″) |
| Weight (Approximate) | 9.56 kg |
| Miscellaneous | |
| Package Contents | Articulating Wall Mount for 39″ to 90″ Displays Wall and Display Installation Hardware Installation Instructions |
| Application/Usage | Wall Concrete Wood Stud Breeze Block Cinder Block |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Articulating |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
