Peerless-AV SmartMount SF670P Universal Flat Wall Mount for 46″ to 90″ Displays
The sturdy SF670 wall plate holds displays weighing up to 250lb while featuring junction box access ports and horizontal display adjustment up to 12″ for ideal display positioning. Its easy-glide brackets enable quick display-to-mount attachment with a simple hook-on design. Delivering an ultra-slim profile, this mount is the essential element for low-profile installations of extra-large displays.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Product Features
- Universal mount fits displays with mounting patterns up to 895 x450mm (35.25″ W x 17.72″ H)

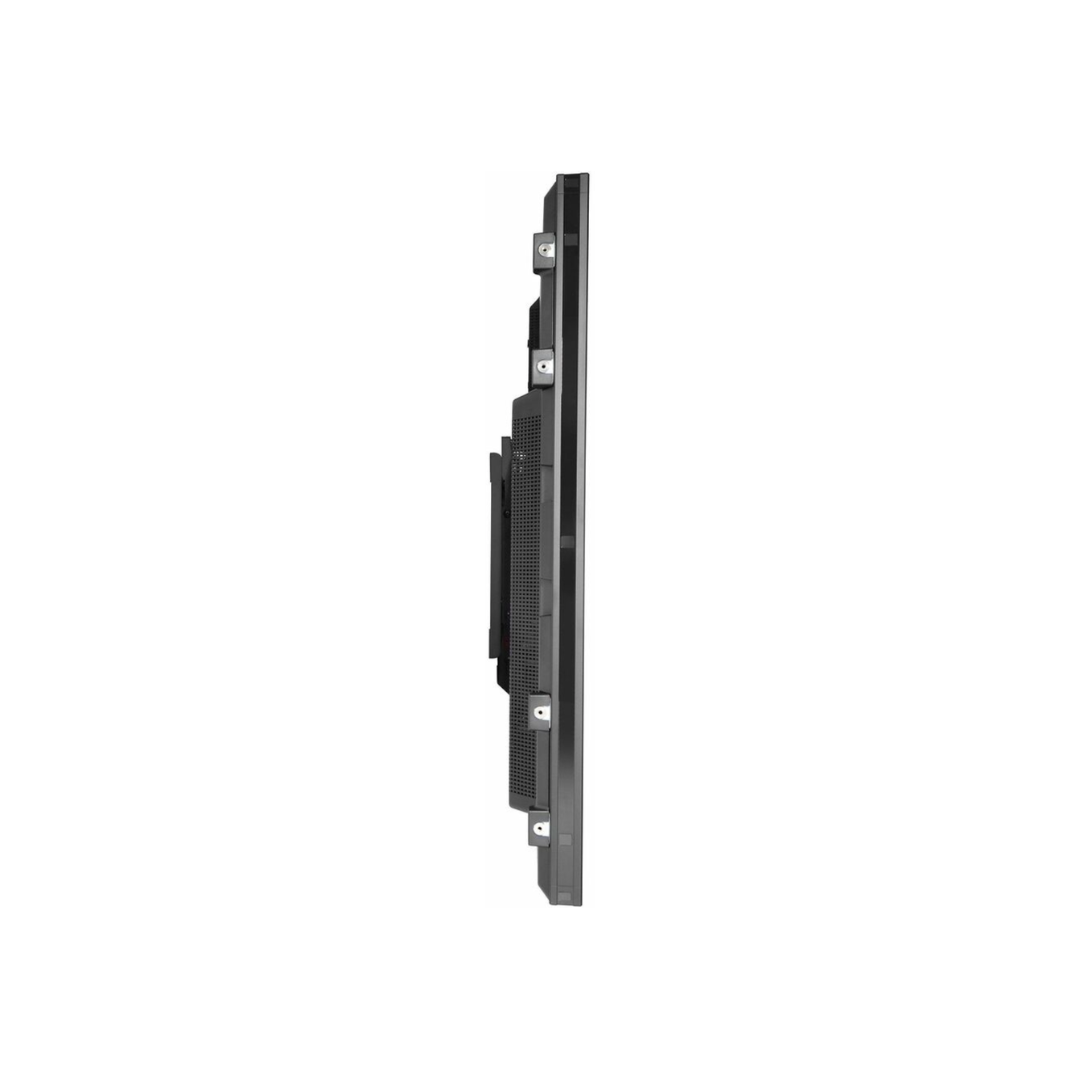

- Low-profile design holds display only 1.73″ (44mm) from the wall
- For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase SF670P
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- Lateral display adjustment up to 11.25″ (286mm)
- 1″ of post-installation vertical adjustment provides flexibility in the installation
- Includes fastener pack with all necessary mounting and display attachment hardware
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase SF670
Technical Specifications
| Product Information | |
| Device Supported | Display |
| Maximum Load Capacity | 113.40 kg |
| Minimum Screen Size Supported | 46″ (116.84 cm) |
| Maximum Screen Size Supported | 90″ (228.60 cm) |
| Features | Sturdy |
| Horizontal Adjustment | |
| Lateral Adjustment | |
| Latch Lock | |
| Kickstand | |
| Mount Pattern | Universal |
| Mount Profile | Low Profile |
| Mount Function | Wall Mount |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
| Theft Resistant | |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Semi-gloss Black |
| Finishing | Powder Coated |
| Fused Epoxy | |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 |
| 300 x 200 | |
| 300 x 300 | |
| 400 x 200 | |
| 400 x 300 | |
| 400 x 400 | |
| 600 x 400 | |
| 800 x 400 | |
| Form Factor | Wall Mountable |
| Height | 49.48 cm (19.48″) |
| Width | 95.89 cm (37.75″) |
| Depth | 4.39 cm (1.73″) |
| Weight (Approximate) | 5.99 kg |
| Miscellaneous | |
| Package Contents | Universal Flat Wall Mount for 46″ to 90″ Displays |
| Wall and Display Installation Hardware | |
| Installation Instructions | |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
| Manufacturer Product Class | Flat |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
