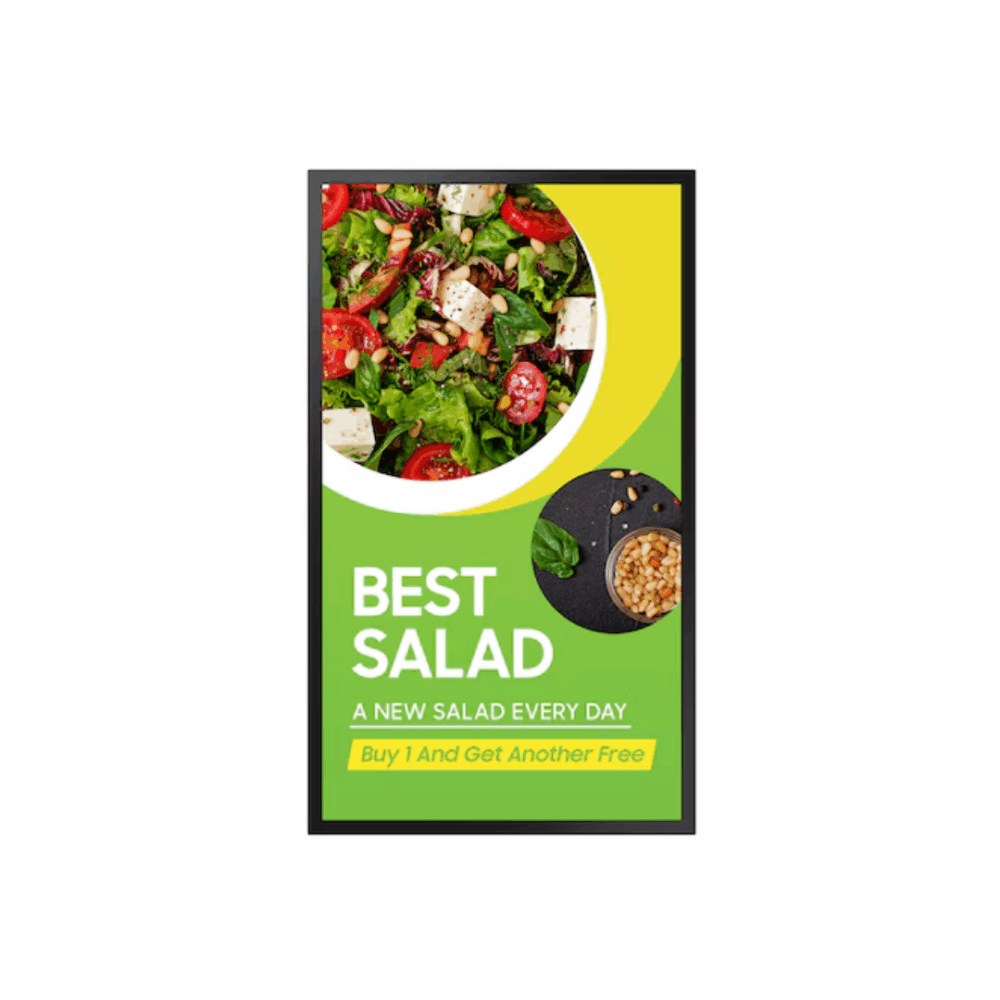

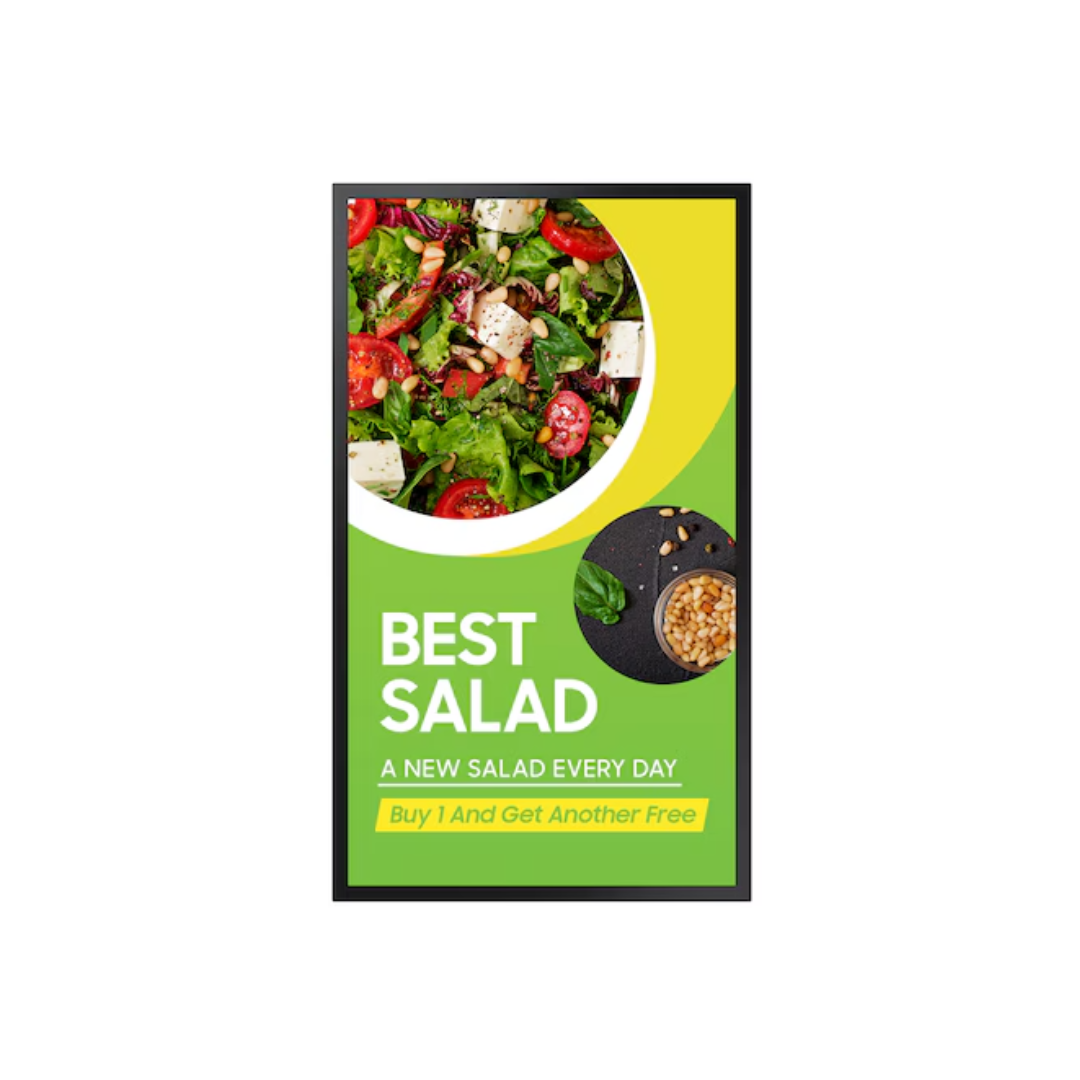

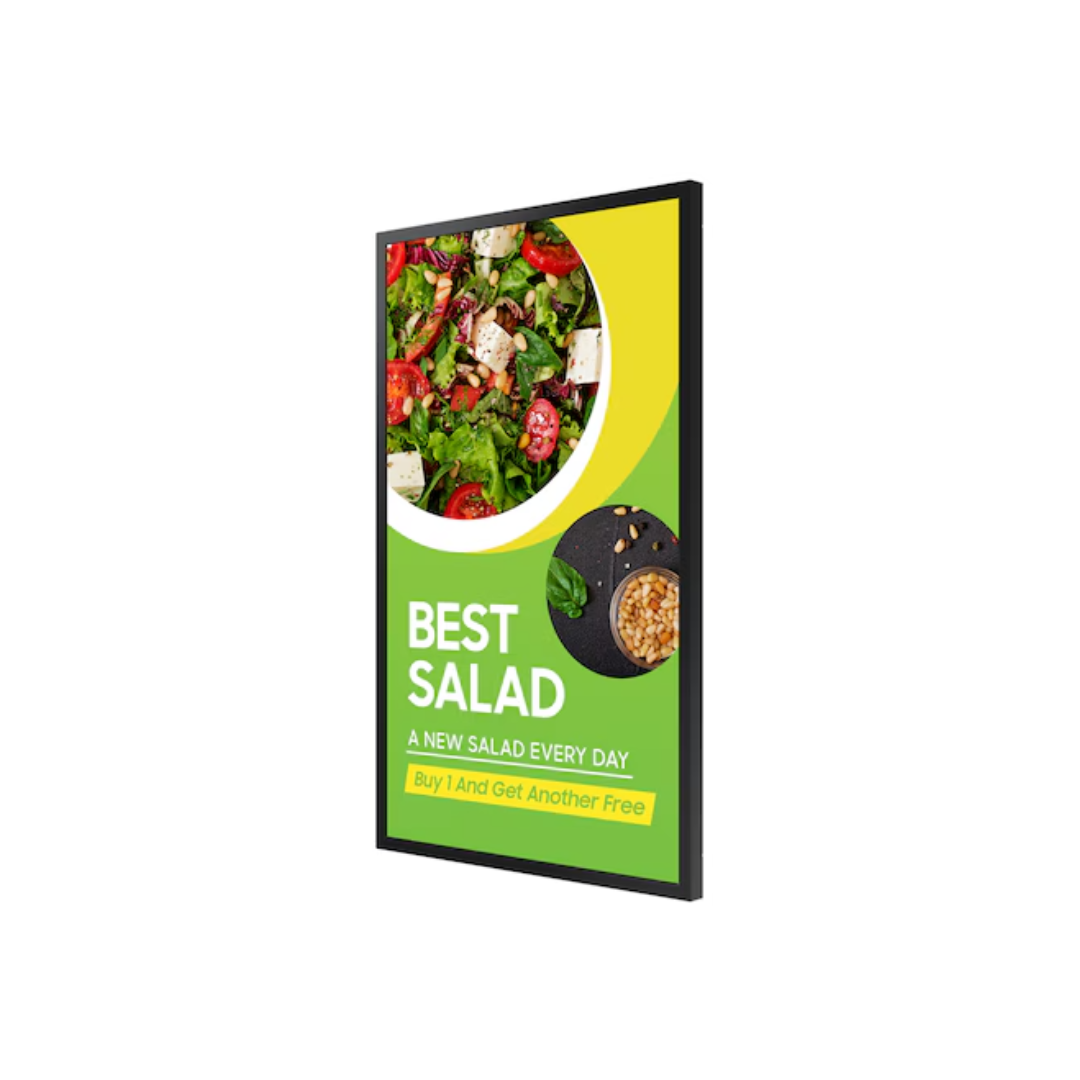

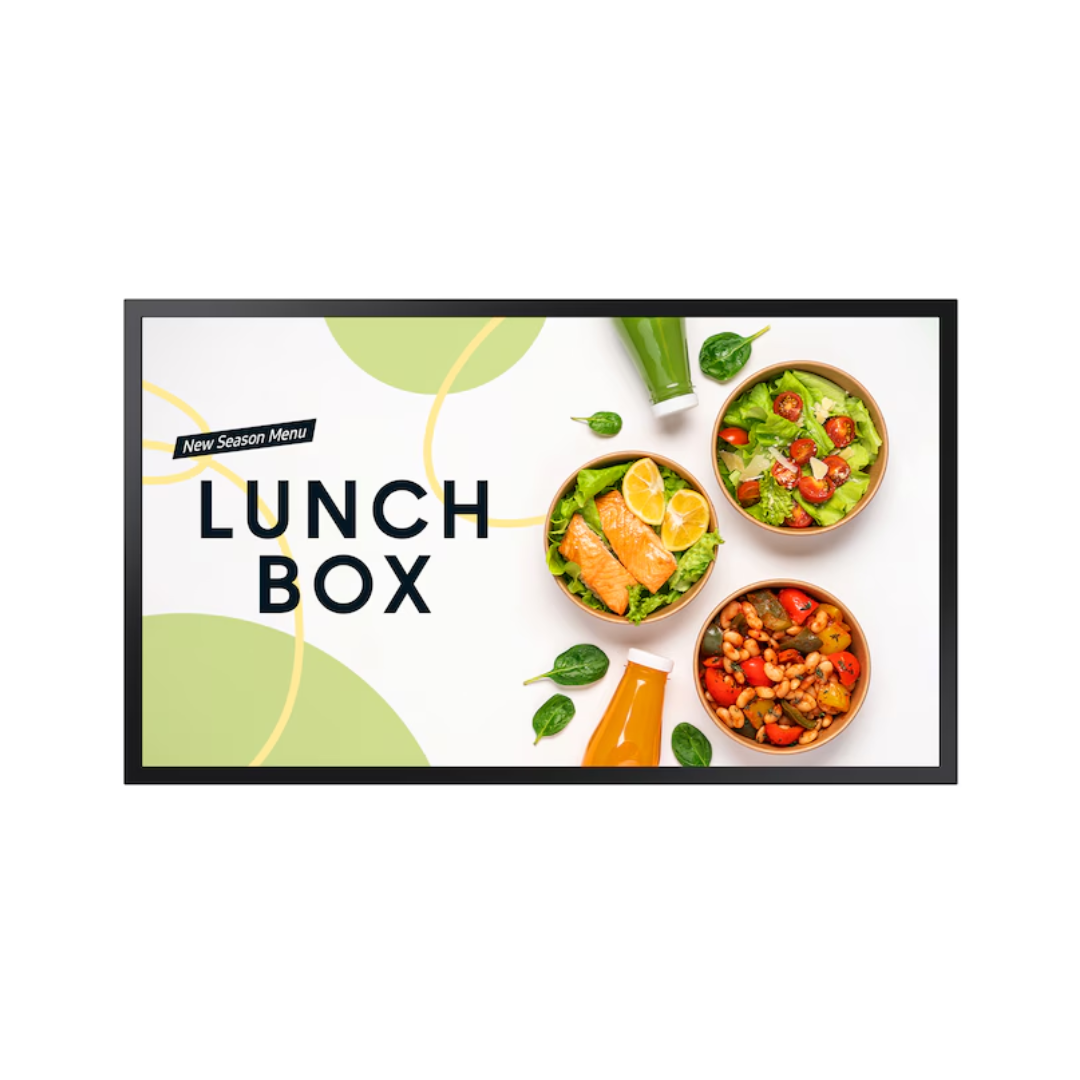

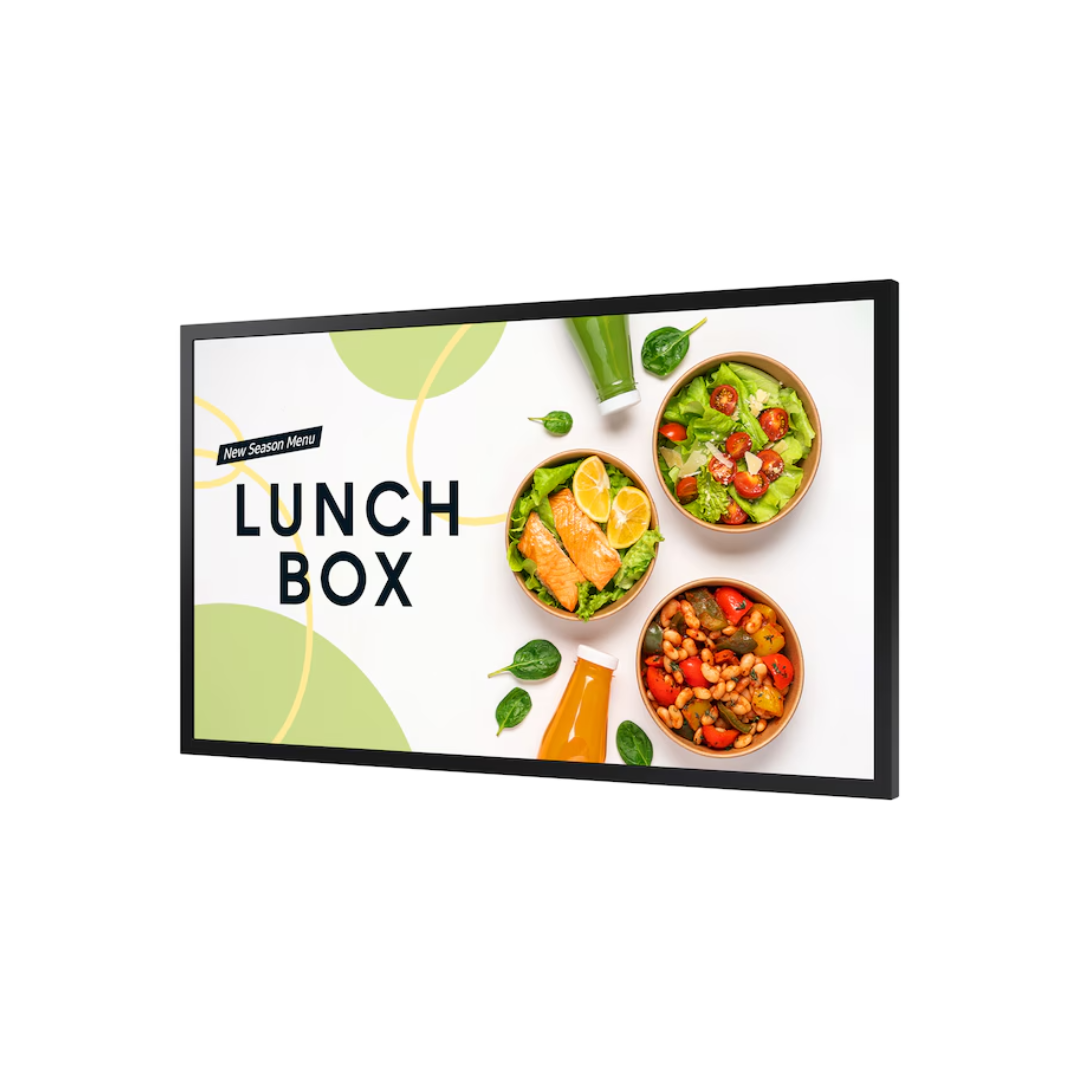

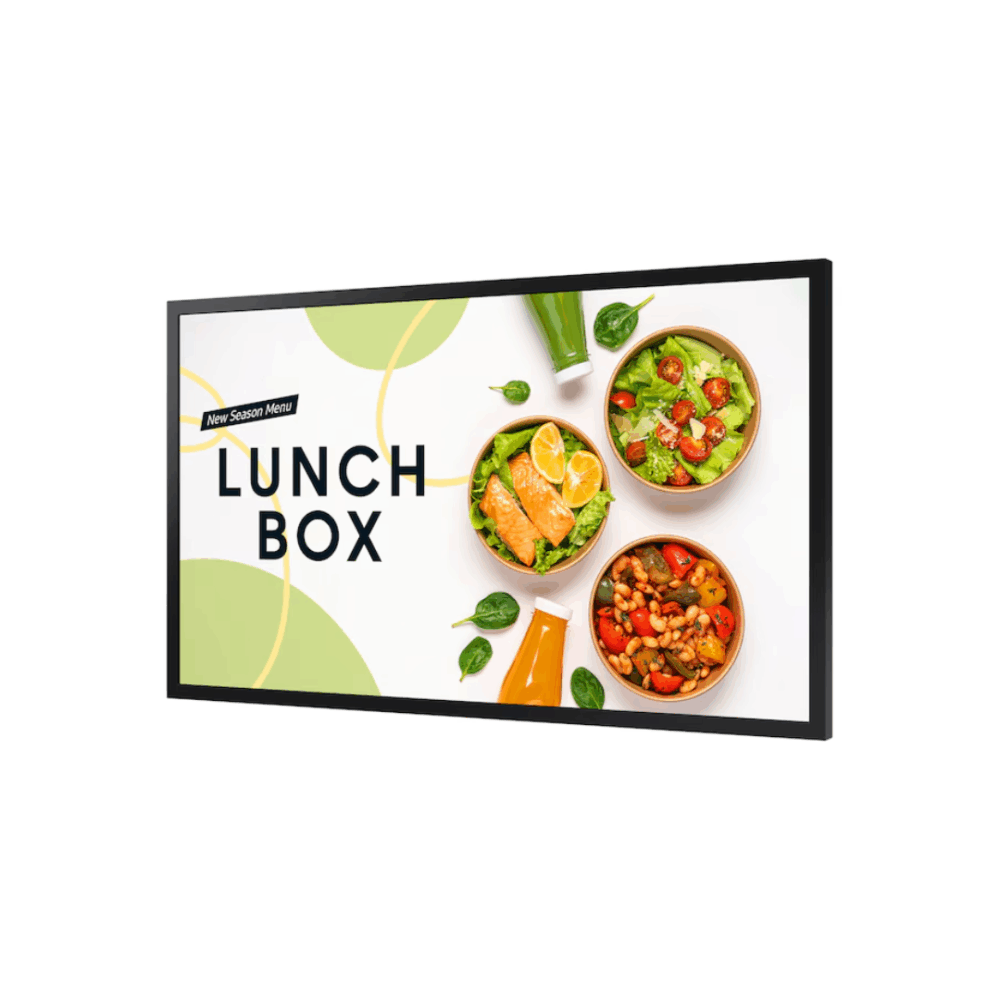

Samsung 32 Inch Professional Outdoor Signage OMDX

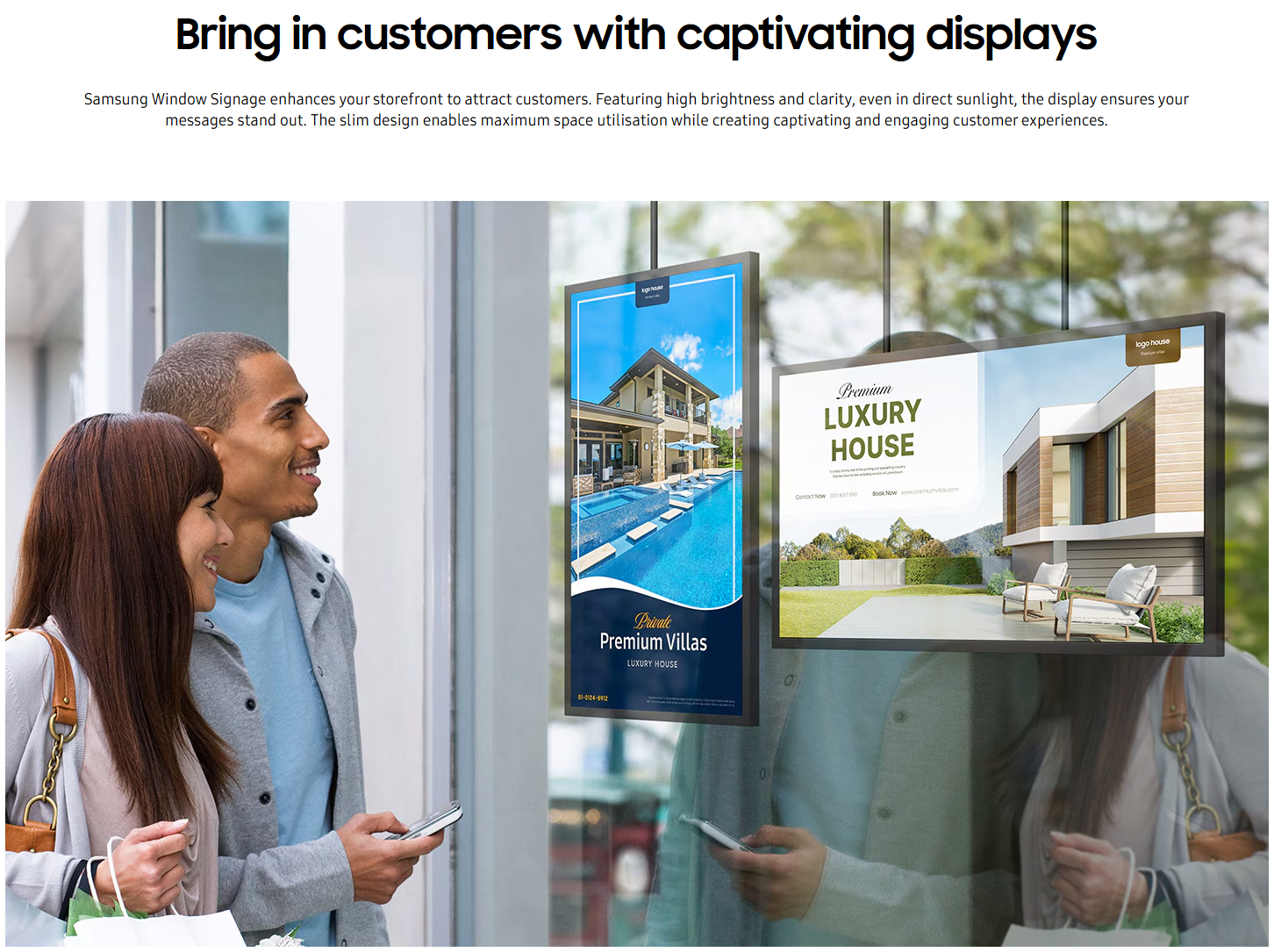

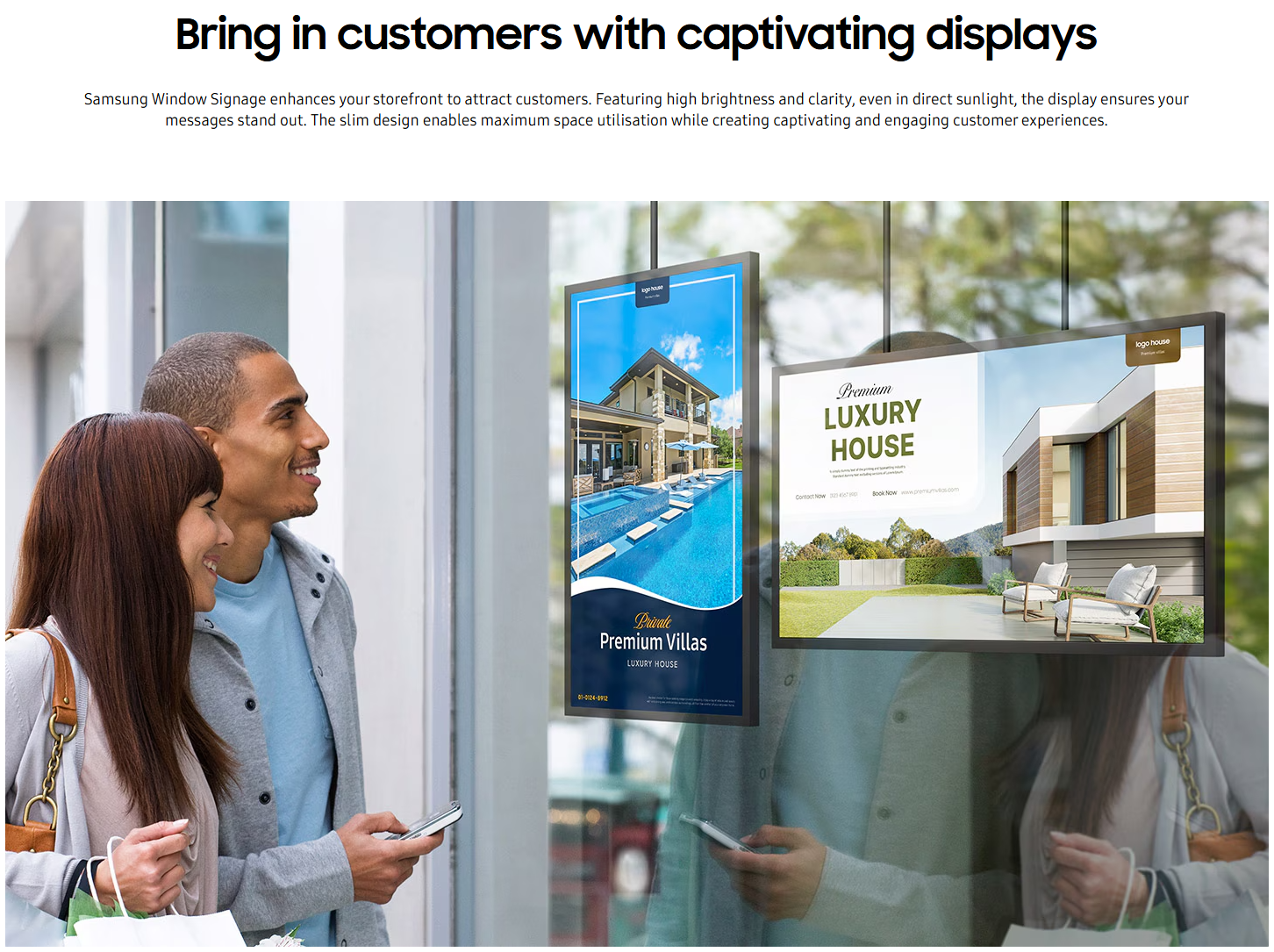

Deliver bright and brilliant messages, built for the outdoors
- High brightness window signage for a clear and vivid displays in any light

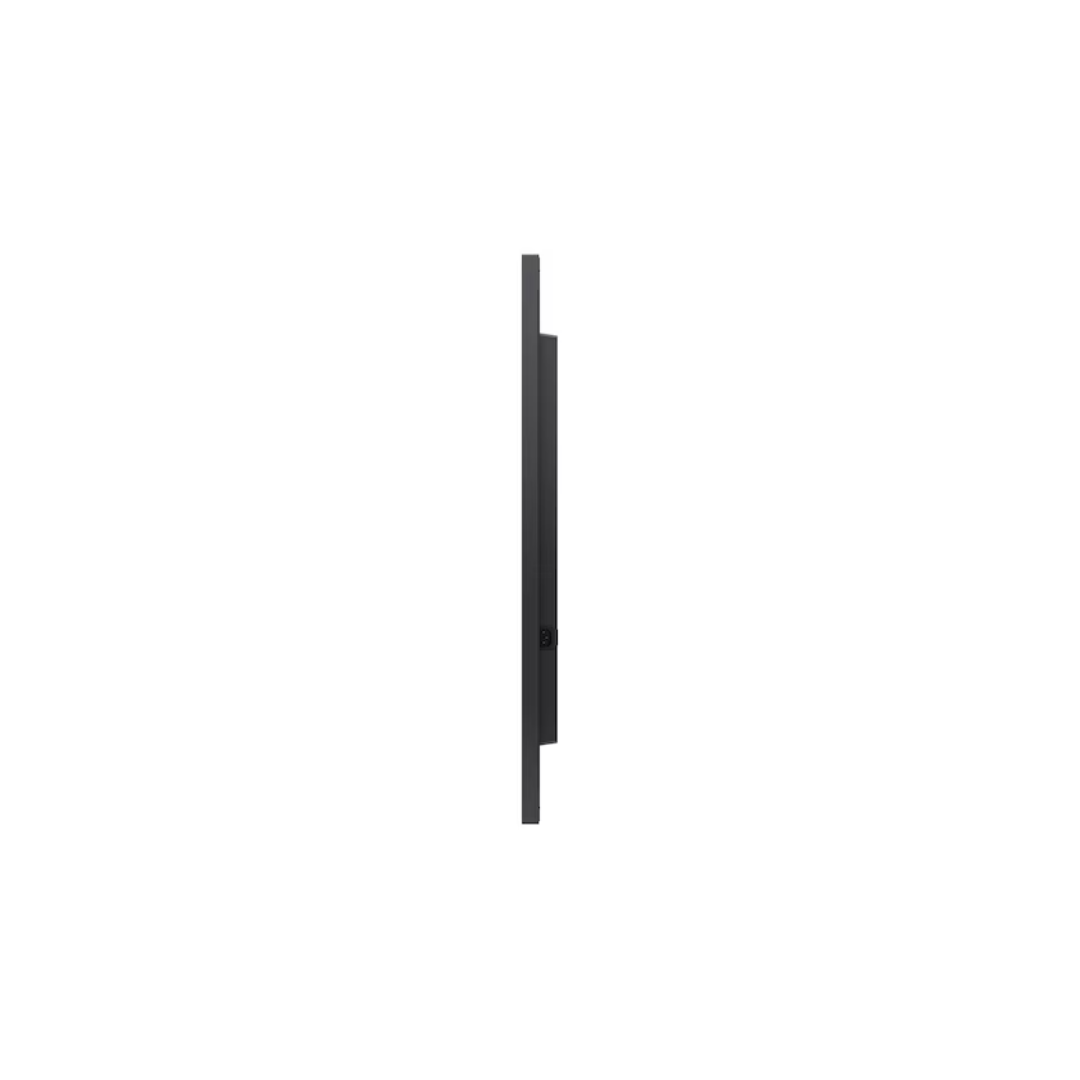

- Ultra slim design with a thickness of 45.6mm, makes it enables maximum space utilisation
- Build in ambient light sensor automatically adjusts brightness levels to match changing light conditions
Technical Specifications
| Display | |
| Diagonal Size | 32″ |
| Panel Type | VA |
| Resolution | 1,920 x 1,080 |
| Pixel Pitch (HxV) | 0.3637(H) x 0.3637(V) |
| Brightness (Typ) | 2,000 nit |
| Contrast Ratio | 4,000:1 |
| Viewing Angle (Horizontal/Vertical) | 178/178 |
| Response Time | 8ms |
| Colour Gamut | sRGB 72% |
| Glass Haze | 0% |
| H-Scanning Frequency | 15~135kHz(HDMI) |
| Maximum Pixel Frequency | 594MHz(HDMI) |
| V-Scanning Frequency | 24~75Hz(HDMI) |
| Contrast Ratio (Dynamic) | Mega |
| Operation Time Support | 24/7 |
| Connectivity | |
| HDMI In | 2 |
| Version of HDMI | 2 |
| Version of HDCP | 2.2 |
| USB | 1 |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo Mini Jack |
| Video Out | No |
| RS232 In | Yes |
| RS232 Out | Yes |
| RJ45 In | Yes |
| RJ45 Out | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 140 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 732.5 x 426.9 x 45.6 mm |
| Package Dimension (WxHxD) | 820.0 x 512.0 x 127.0 mm |
| Weight | |
| Set Weight | 7.6 kg |
| Package Weight | 9.7 kg |
| Operation Conditions | |
| Temperature | 0℃~40℃ |
| Humidity | 10 ~ 80%, non-condensing |
| Mechanical Specification | |

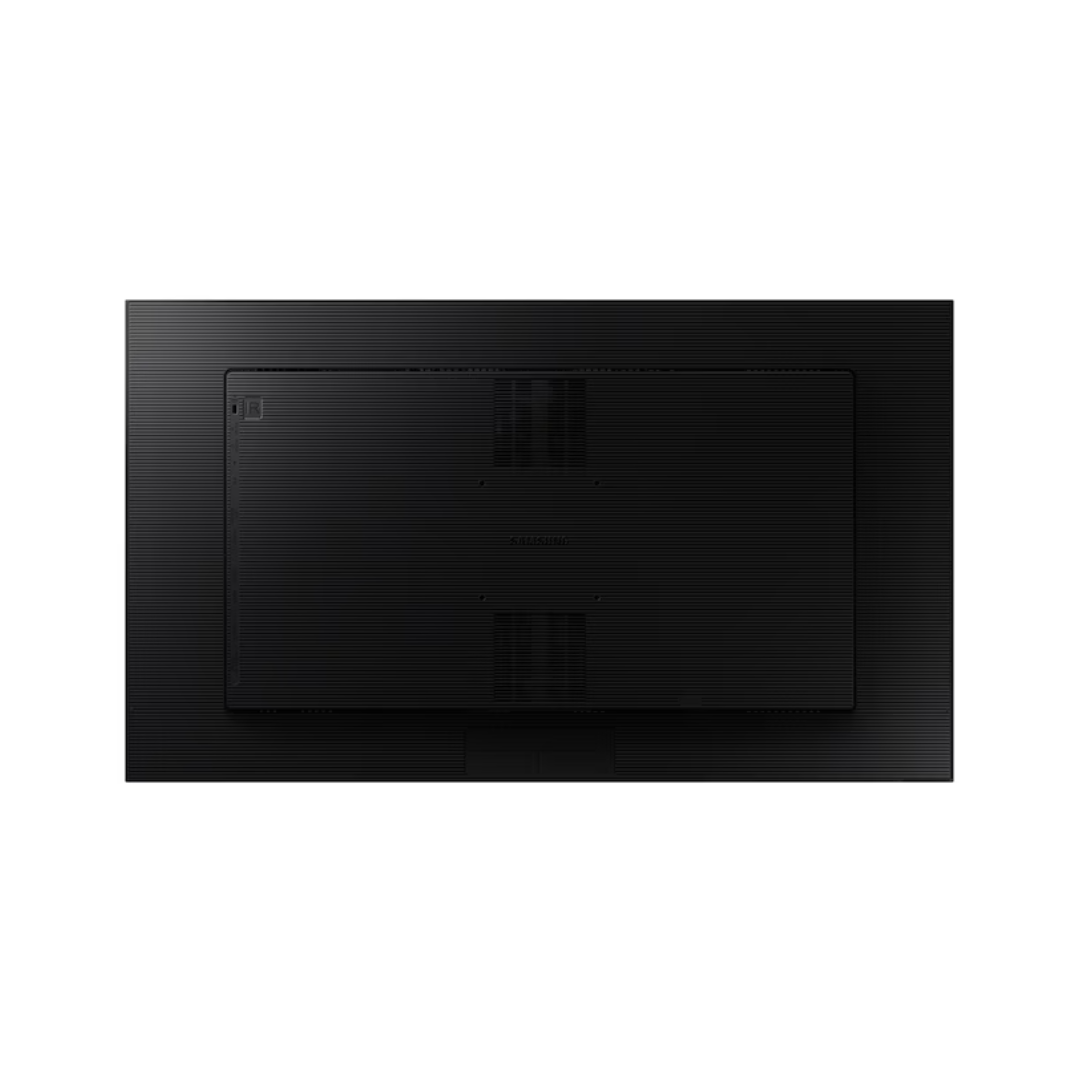

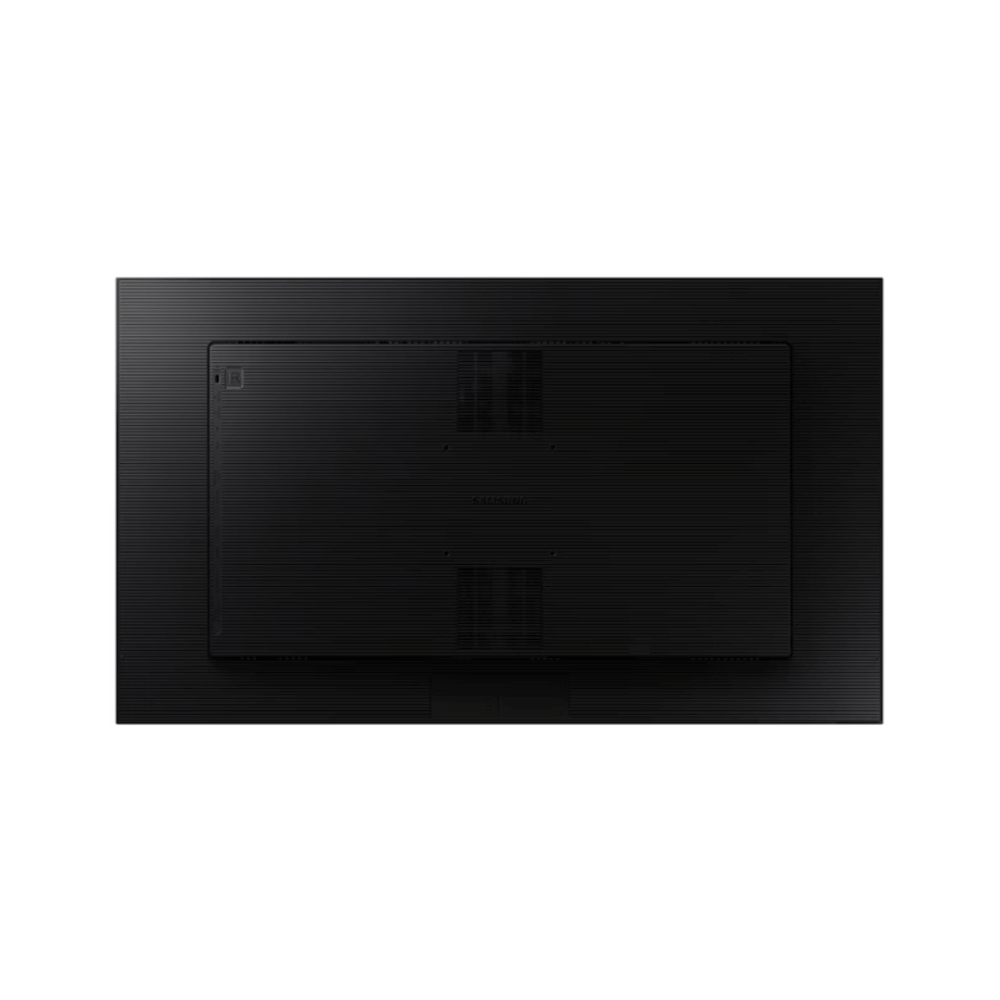

| VESA Mount | 100 x 100 mm |
| Bezel Width | 15.4(EVEN) |
| Bezel Color | Black |
| Frame Material | Non-Glossy |
| SoC | |
| OS Version | Tizen 8.0 |
| Flash Memory Size | 8GB |
| Certification and Compliance | |
| EMC | Class A |
| Safety | 60950-1, 62368-1 |
