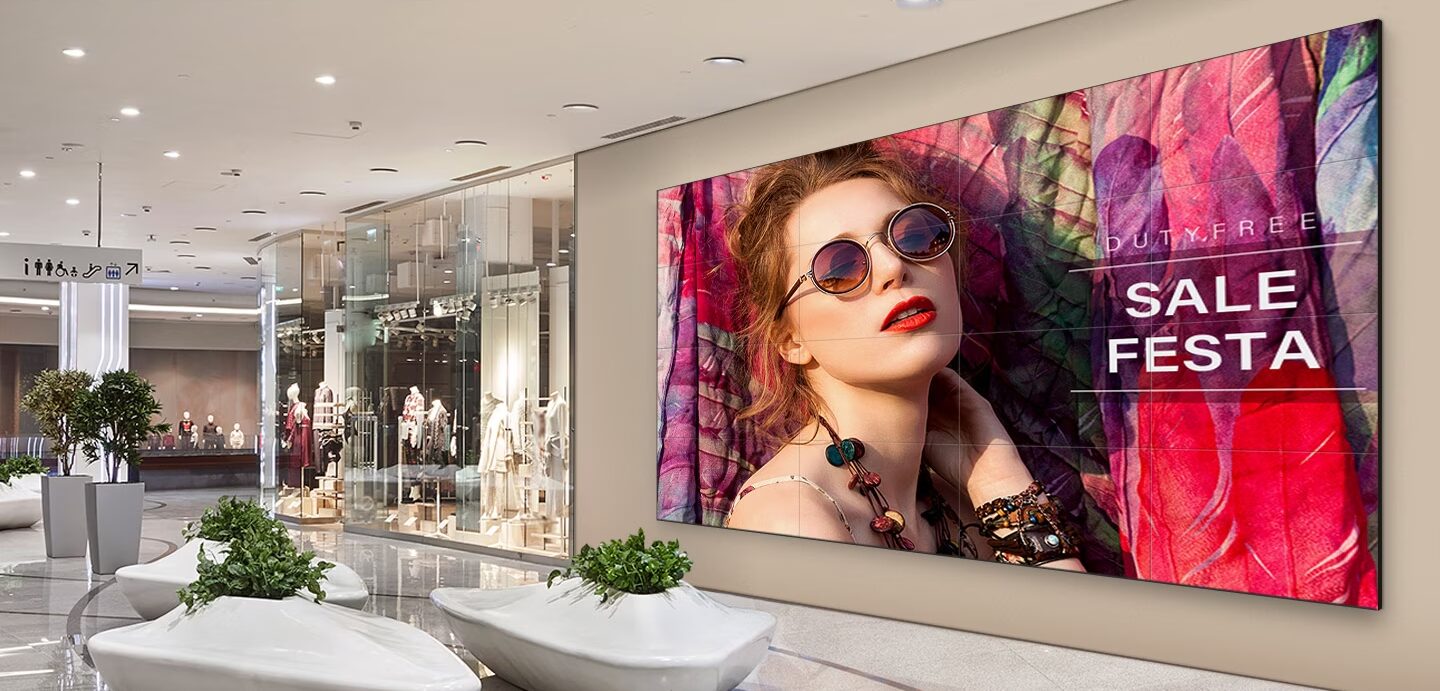

Samsung 55″ VMC-R Razor Narrow Bezel Video Wall Display
With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VMC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.
- An extreme narrow 0.8 mm bezel-to-bezel design creates seamless visual experience.
- 500 nit brightness and non-glare panel provide high visibility 24/7.
- Wide viewing angles enable clear image presentation for more viewers in large spaces.
- Picture enhancement technology delivers optimized visuals.
Product Specifications
| Display | |
| Diagonal Size | 55″ |
| Panel Type | IPS |
| Resolution | 1,920 x 1,080 |
| Pixel Pitch (HxV) | 0.63 x 0.63 |
| Brightness (Typ) | MAX 500 nit |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (Horizontal/Vertical) | 178/178 |
| Response Time | 8ms |
| Colour Gamut | 72 % |
| Glass Haze | 28 % |
| H-Scanning Frequency | 57.3kHz ~ 70kHz |
| Maximum Pixel Frequency | 78MHz |
| V-Scanning Frequency | 47Hz ~ 63Hz |
| Contrast Ratio (Dynamic) | 100,000:1 |
| Operation Time Support | 24/7 |
| Connectivity | |
| HDMI In | 2 |
| DP In | 1 |
| DVI In | 1 |
| Version of HDMI | 2 |
| Version of DP | 1.2 |
| Version of HDCP | 2.2 |
| USB | 1 |
| IR In | Yes |
| Audio In | Yes |
| Audio Out | Stereo Mini Jack |
| Video Out | Yes |
| RS232 In | Yes |
| RJ45 In | Yes |
| WiFi | No |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 270 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 1211.0 x 681.7 x 69.9 mm |
| Package Dimension (WxHxD) | 1414.0 x 844.0 x 257.0 mm |
| Weight | |
| Set Weight | 16.8 kg |
| Package Weight | 25.1 kg |
| Operation Conditions | |
| Temperature | 0℃~ 40℃ |
| Humidity | 10 ~ 90% |
| Mechanical Specification | |
| VESA Mount | 600 x 400 mm |
| Bezel Width | 0.44 (even) |
| Bezel Color | Black |
| Frame Material | Glossy |
| Eco | |
| Energy Efficiency Class | G |
| Certification and Compliance | |
| EMC | FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438 |
| Safety | CB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Korea) : K 60950-1EAC (Russia) : EAC+IEC60950-1 BSMI (Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC62368-1/AS/NZS 62368-1 UL (USA) : cUL62368-1 CSA (Canada) : cUL |
