Samsung Smart Signage Kiosk Connection Box – CY-KM24APXEN
Samsung’s latest technology delivers a new standard of kiosk, offering a compact, space-saving design, advanced security provided by Knox, and easy management and maintenance for reliable performance. Built based on Samsung’s SoC(System on Chip) technology, it is the ideal solution for any business.

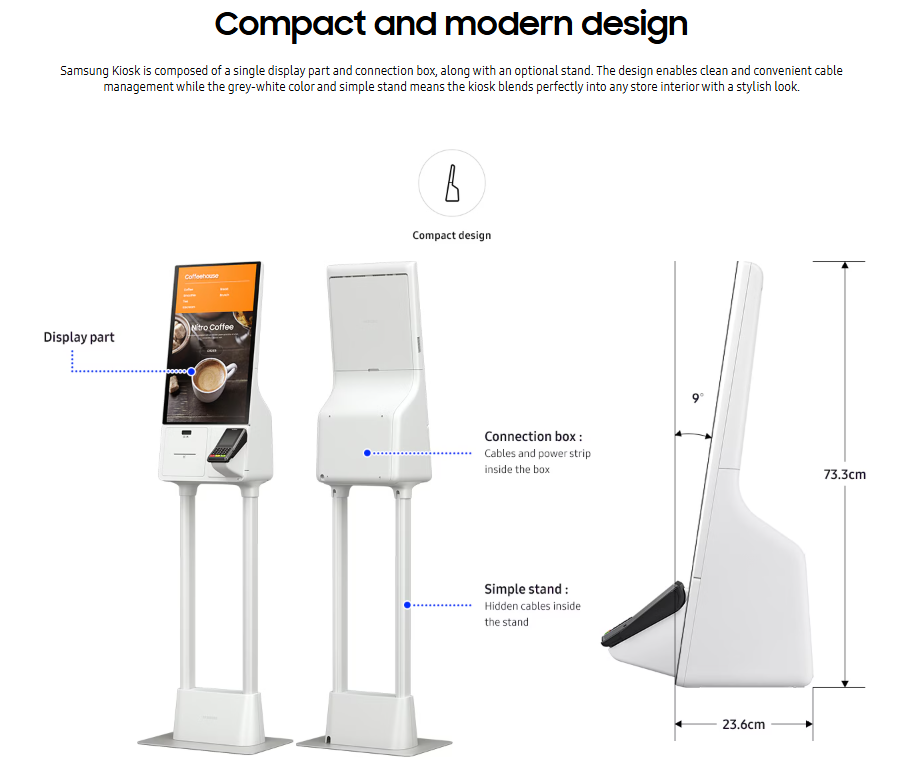

- Compact and modern design
- Modular functionality to support any payment type
- Versatile solution for any scenario
Technical Specifications
Bi-Direction | |
One Connect Port | 44 pin |
Input & Output | |
USB | 3ea |
External Control | |
Ports | RS232C x 3, RJ45 x 1 (OUT, connected to EFT Terminal) |
Receipt Printer | |
Type | Thermal |
Printing Speed | 250 mm/sec |
Cutting | Automatic (Support Full cut, Partial cut) |
Paper Support | Support 80mm paper roll, 20~83mm paper width, 0.05~0.12mm paper thickness |
QR/Barcode Reader | |
Supported Dimension | 1D, 2D |
Readability | Mobile screen and printed barcodes |
Supported Format | UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, GS1 DataBar, Codabar, QR |
Dimension | |
Set Dimension (WxHxD, mm) | 334.4(W) x 389.6(H) x 236.5(D) |
Package Dimension (WxHxD, mm) | 428(W) x 471(H) x 316(D) |
Weight | |
Set Weight | 7.4 kg |
Package Weight | 9.1 kg |
Assembled Set | |
Power Supply | AC 100~240V 50/60Hz |
Power Consumption (On Mode, W) | 25W/h |
Power Consumption (Sleep Mode, W) | 0.5W/h |
Set Dimension | 334.4(W) x 733(H) x 236.5(D) |
Set Weight | 12.5 kg |
Set Color | Gray White |
Protection Glass | Yes |
Power Cable Length (m) | 2.4m |
Operating Temperature | 0℃~ 40℃ |
Operating Humidity | 10~80% |
Optional Stand | Floor Stand (Optional) |
Optional Mount | VESA 200 x 200 |
