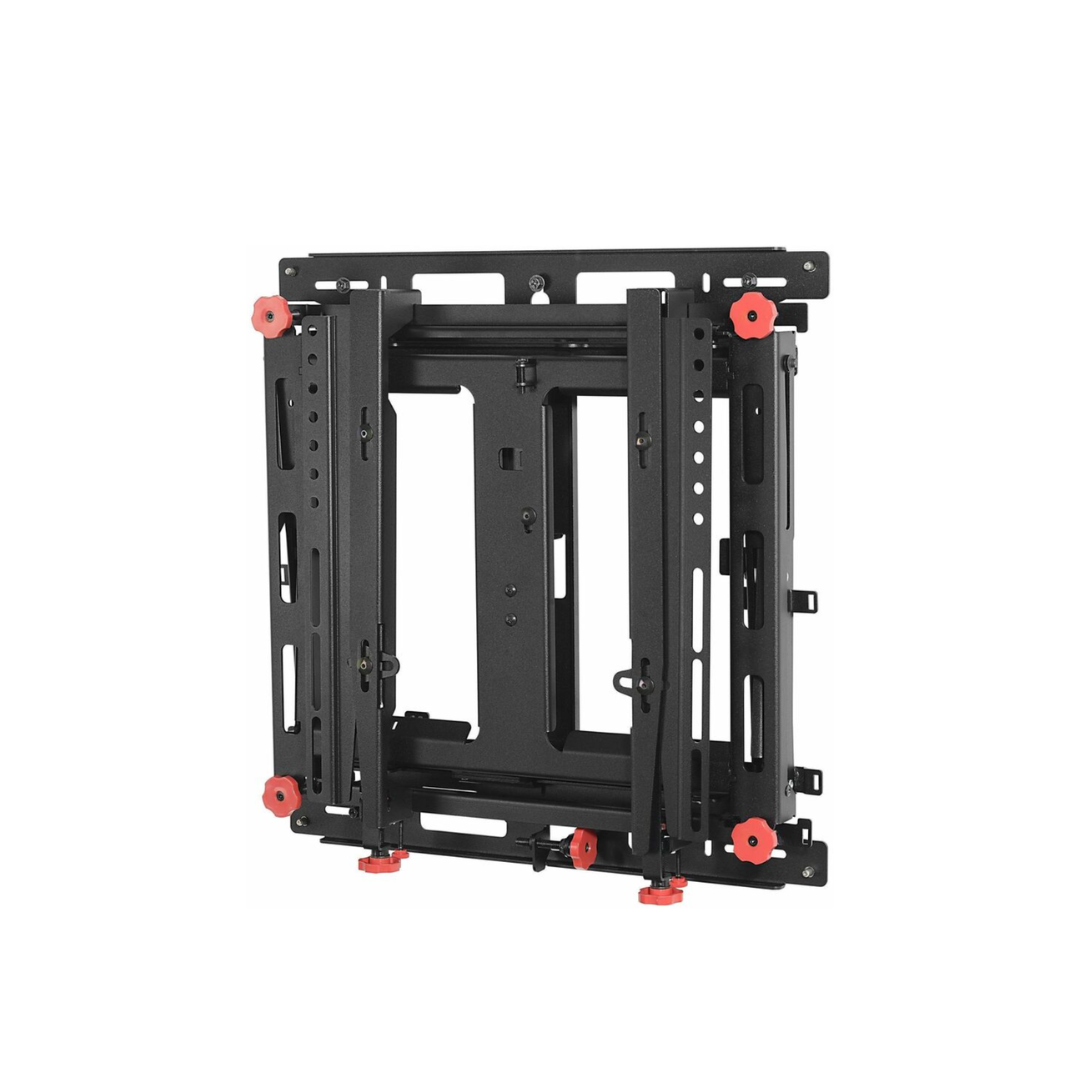

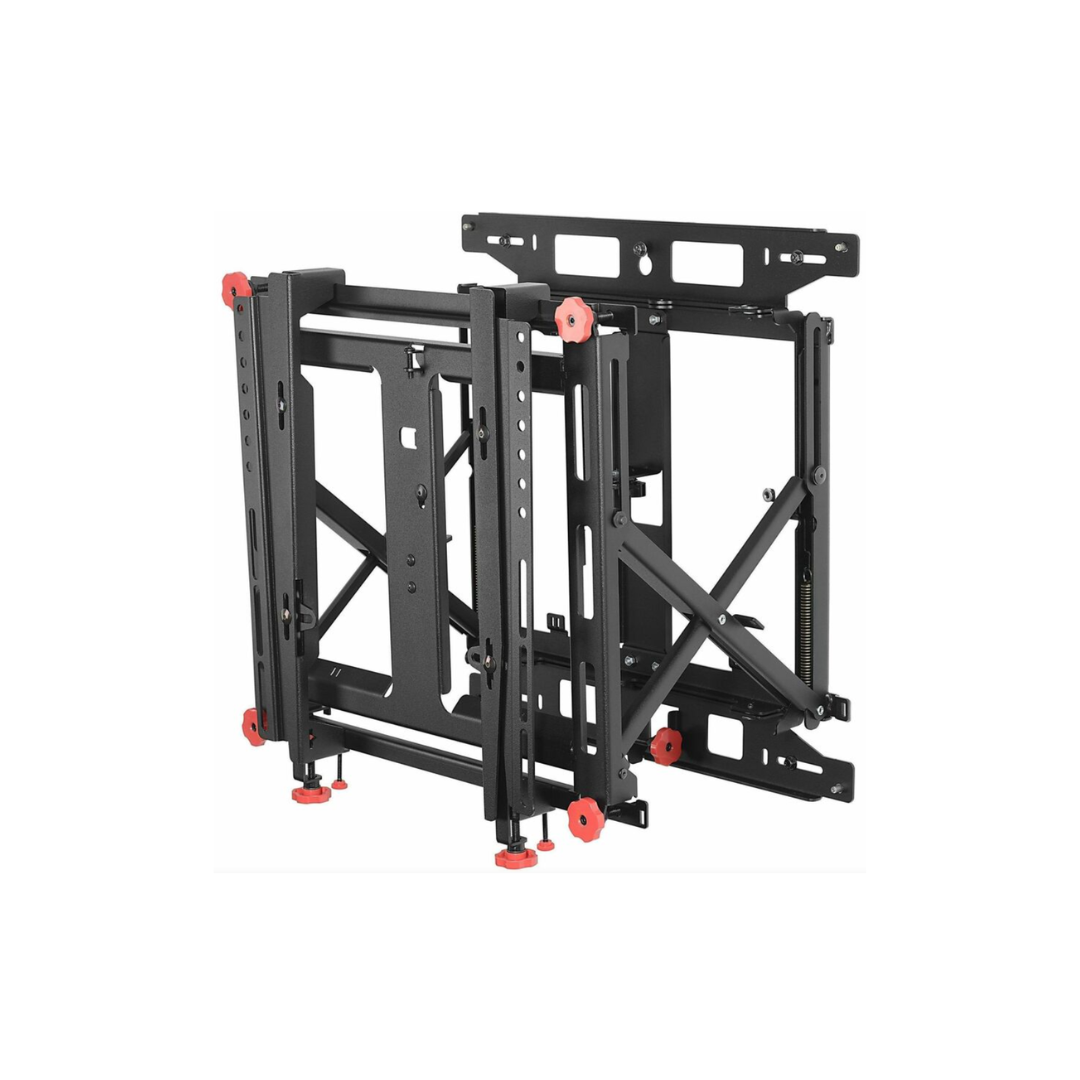

Peerless-AV Supreme Full Service Video Wall Mount with Quick Release for 46″ to 60″ Displays
Peerless-AV’s SmartMount® Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5″ of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before with a gentle press to release mechanism, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Product Features
- Compatible up to VESA 600 x 400mm
- Accommodates displays in Landscape and Portrait orientation
- Integrated cable management allow cables to move in and out with the display
- Modular mount for unlimited video wall display configurations
- Security hardware option deters tapering and theft
- 1.5″ of fine tune adjustment on each of the X, Y and Z axis
- Easy hang wall plate is compatible with the Peerless-AV install app for a simplified install
- Gentle, press-to-release quick release mechanism provides convenient display access
- Reusable custom wall spacers eliminate guesswork and on-site install calculations
Technical Specifications
| Product Information | |
| Device Supported | Video Wall Display |
| Maximum Load Capacity | 56.70 kg |
| Minimum Screen Size Supported | 46″ (116.84 cm) |
| Maximum Screen Size Supported | 60″ (152.40 cm) |
| Minimum Adjustable Depth | 7.87 cm (3.10″) |
| Maximum Adjustable Depth | 36.83 cm (14.50″) |
| Features | Quick Release Mechanism Adjustable Depth Cable Management 3-Axis Tool-less Micro-Adjustment Lateral Adjustment |
| Orientation | Landscape / Portrait |
| Mount Pattern Compatibility Type | Dedicated |
| Mount Function | Video Wall |
| Mount Surface | Wall |
| Durability | Tamper Resistant
Theft Resistant |
| Physical Characteristics | |
| Colour Family | Black |
| Product Colour | Black |
| Finishing | Powder Coated
Textured |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 up to 600 x 400 mm |
| Form Factor | Wall Mountable |
| Height | 54.51 cm (21.46″) |
| Width | 53.98 cm (21.25″) |
| Depth | 36.98 cm (14.56″) |
| Weight (Approximate) | 15.51 kg |
| Miscellaneous | |
| Package Contents | Supreme Full Service Video Wall Mount with Quick Release For 46″ to 60″ Displays Adaptor Rails Mounting Hardware |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Wall, Quick Release Pop-out |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
