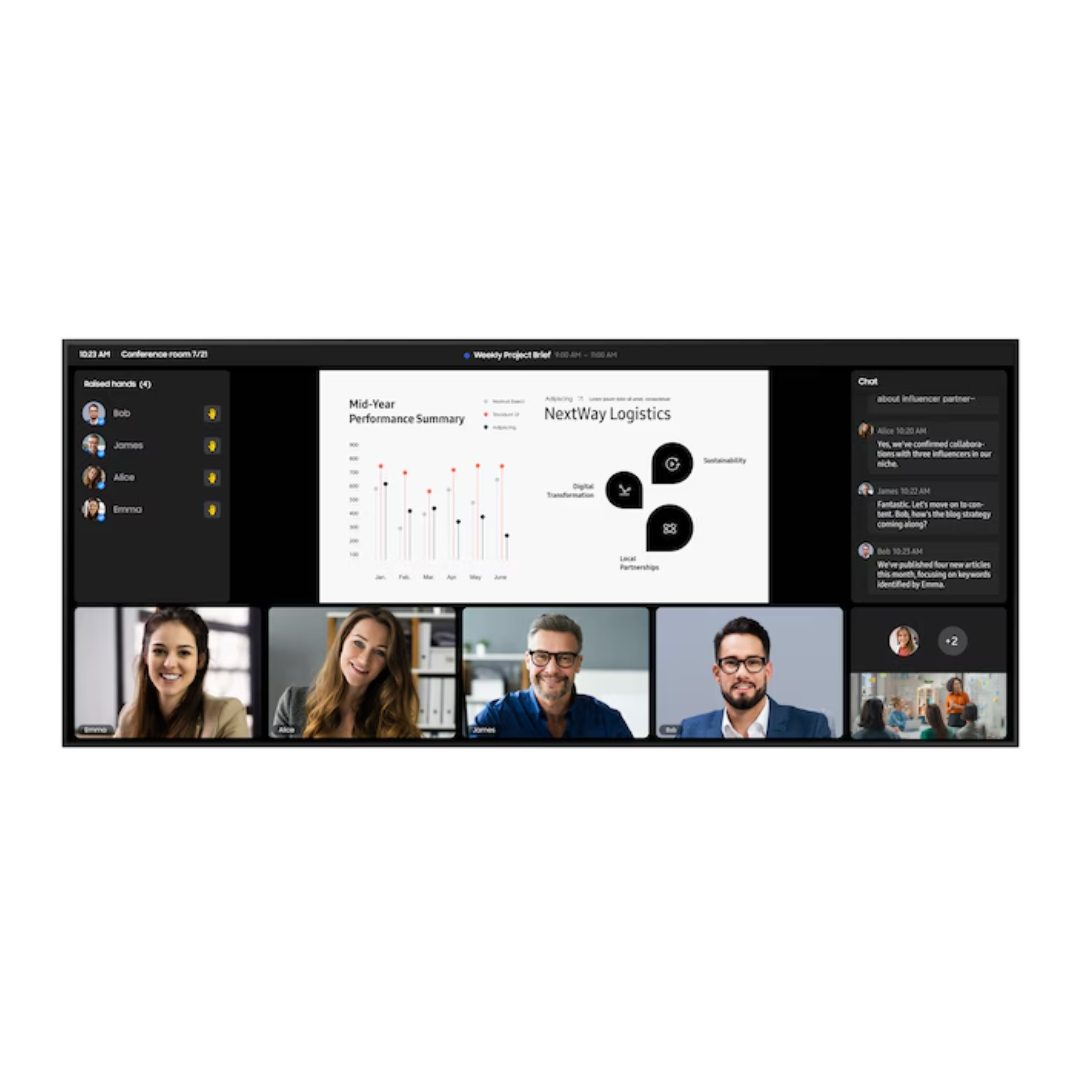

Samsung 105″ Professional Smart Signage Display QPDX
- 105″, 21:9 5k Ultra wide screen eliminates the need for multiple displays
- Slimmest in its class, just 48.1mm in depth making it ideal for meeting rooms
- Smartview+ – Collaborate instantly with wireless screen sharing

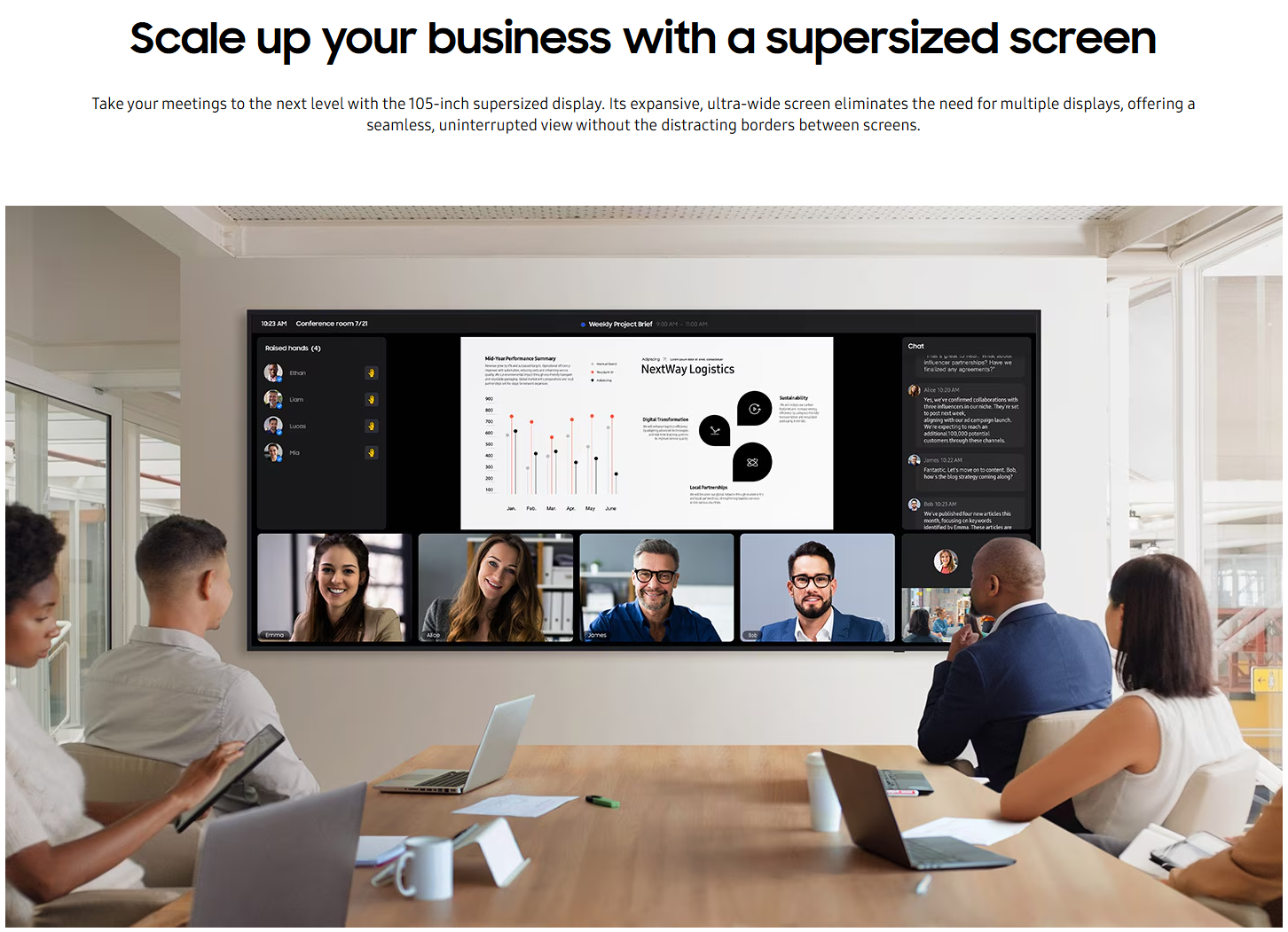

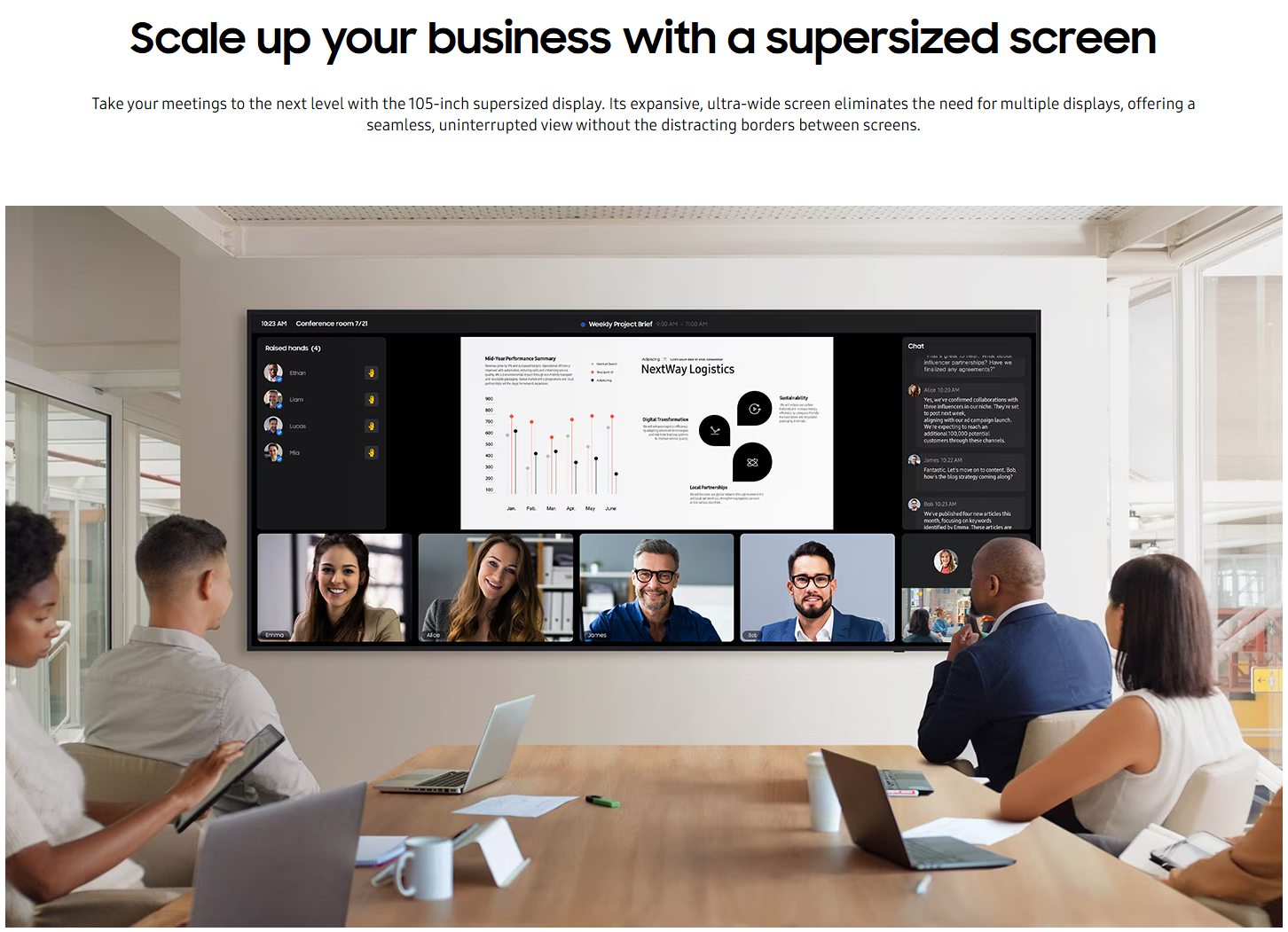

21:9 Ultra-Wide Screen
The QPDX-5K’s 21:9 aspect ratio is designed for today’s modern meeting spaces and optimised for the video conference layout. Whether attendees are in-person or remote, the display ensures equal engagement, providing a truly immersive meeting environment that fosters collaboration.
Product Specifications
| Display | |
| Diagonal Size | 105″ |
| Panel Type | VA(Direct) |
| Resolution | 5,120 x 2,160 |
| Pixel Pitch (HxV) | 0.1595 x 0.4785 mm |
| Brightness (Typ) | 500 nit |
| Contrast Ratio | 4,000:1 |
| Viewing Angle (Horizontal/Vertical) | 178/178 |
| Response Time | 6ms(Typ.) |
| Colour Gamut | 72%(NTSC) |
| Glass Haze | 25% |
| H-Scanning Frequency | 30~81kHz |
| Maximum Pixel Frequency | 742.5MHz |
| V-Scanning Frequency | 48~75Hz |
| Contrast Ratio (Dynamic) | Mega |
| Operation Time Support | 24/7 |

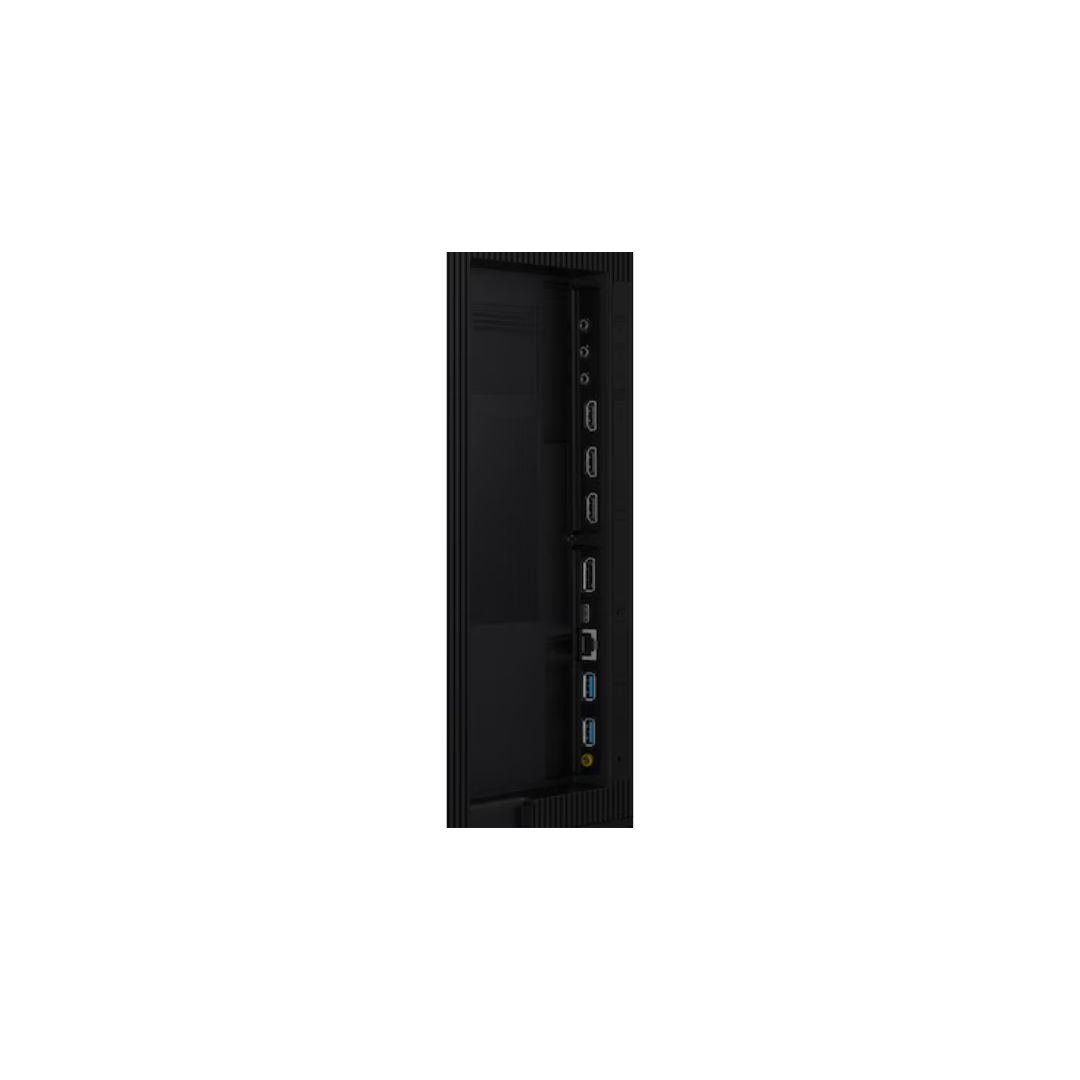

| Connectivity | |
| HDMI In | 3 |
| DP In | 1 |
| Version of HDMI | 2.1 |
| Version of DP | 1.4 |
| Version of HDCP | 2.2 |
| USB | Type-A(2), Type-C(1) |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo Mini Jack |
| RS232 In | Yes |
| RS232 Out | Yes |
| RJ45 In | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 550 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 2484.3 x 1068.0 x 48.1 mm |
| Package Dimension (WxHxD) | 2668.0 x 1190.0 x 275.0 mm |
| Weight | |
| Set Weight | 55.6 kg |
| Package Weight | 78.1 kg |
| Operation Conditions | |
| Temperature | 0℃~ 40℃ |
| Humidity | 10 ~ 80%, non-condensing |
| Mechanical Specification | |
| VESA Mount | 1000 x 400 mm |
| Bezel Width | 14.8mm (Even) |
| Bezel Color | Slate Black |
| Frame Material | Non-Glossy(Metal) |
| SoC | |
| OS Version | Tizen 8.0 |
| Flash Memory Size | 16GB |
| Certification and Compliance | |
| EMC | Class A |
| Safety | 60950-1, 62368-1 |
