Samsung 55″ Professional Outdoor Signage OHDX
Deliver bright and brilliant messages, built for the outdoors
- Brightness level of 3,500 nits delivers 24/7 performance in any light
- IP56-rated protection and dustproof design
- Auto-Brightness Sensor enables efficient operation
- 2nd Glass installable Structure
Technical Specifications
| Display | |
| Diagonal Size | 55″ |
| Panel Type | VA |
| Resolution | 1,920 x 1,080 |
| Pixel Pitch (HxV) | 0.63 x 0.63 |
| Brightness (Typ) | 3,500 (Peak 4,000 ) |
| Contrast Ratio | 6,000:1 |
| Viewing Angle (Horizontal/Vertical) | 178/178 |
| Response Time | 6ms |
| Colour Gamut | 72 % |
| Glass Haze | 0 % |
| H-Scanning Frequency | 15~135kHz(HDMI) |
| Maximum Pixel Frequency | 594MHz(HDMI) |
| V-Scanning Frequency | 24~75Hz(HDMI) |
| Contrast Ratio (Dynamic) | Mega |
| Operation Time Support | 24/7 |

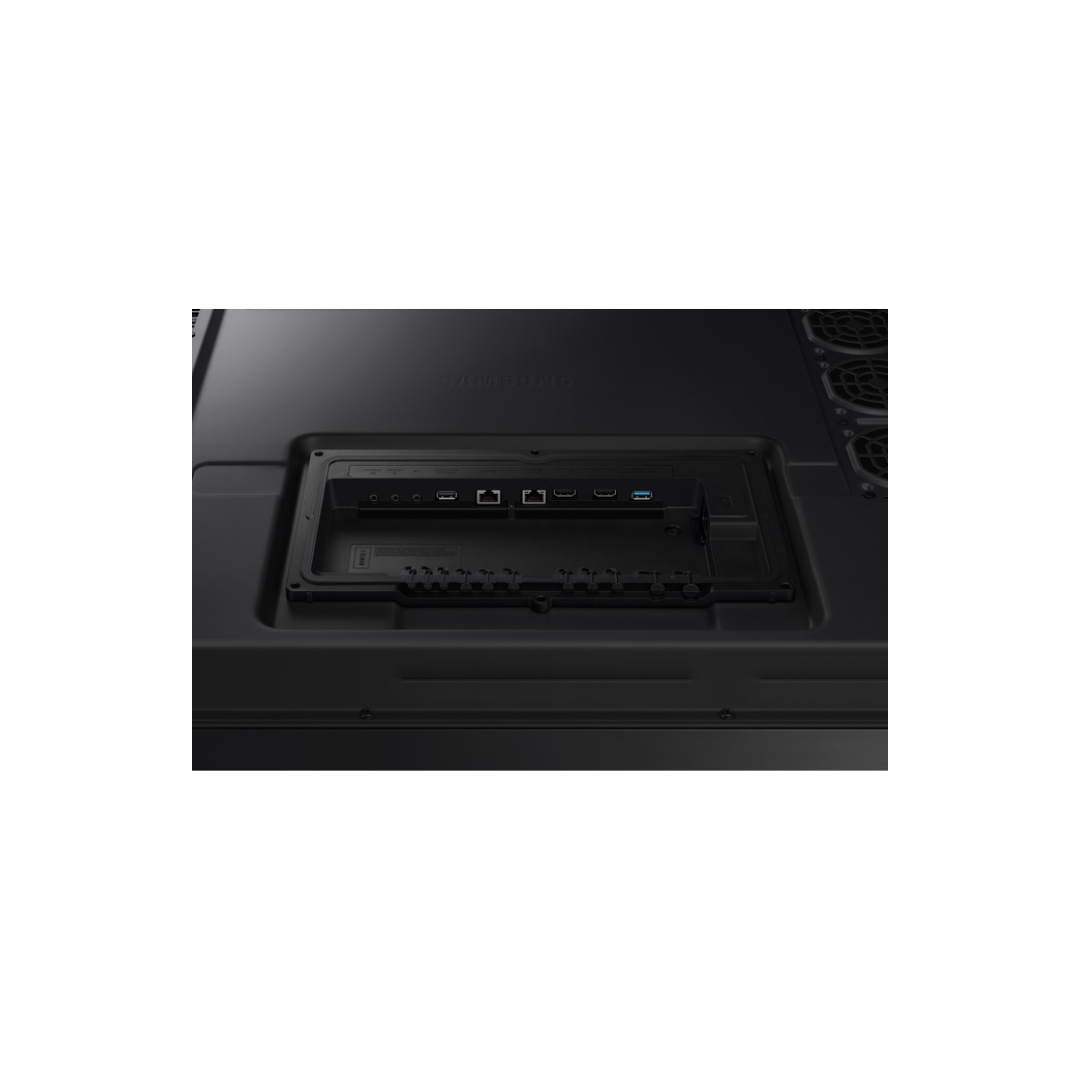

| Connectivity | |
| HDMI In | 2 |
| Version of HDMI | 2 |
| Version of HDCP | 2.2 |
| USB | 2 |
| HDBaseT In | Yes |
| Audio Out | Stereo Mini Jack |
| Video Out | No |
| RS232 In | Yes |
| RS232 Out | Yes |
| RJ45 In | Yes |
| RJ45 Out | Yes |
| WiFi | Yes (External) |
| Bluetooth | Yes (External) |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 580 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (WxHxD) | 1260.6 x 731.4 x 69.0 mm |
| Package Dimension (WxHxD) | 1398 x 844 x 191 mm |
| Weight | |
| Set Weight | 36.7 kg |
| Package Weight | 43.1 kg |
| Operation Conditions | |
| Temperature | -30℃~ 50℃ |
| Humidity | 10 ~ 80%, non-condensing |
| Mechanical Specification | |
| VESA Mount | 1186 x 560 mm |
| Bezel Width | 24.9mm (T/B/L/R) |
| Bezel Color | Slate Black |
| Glass Thickness | 3T |
| Glass Film | AG, AR/IR, SRF |
| SoC | |
| OS Version | Tizen 8.0 |
| Flash Memory Size | 8GB |
| Certification and Compliance | |
| EMC | Class A |
| Safety | 60950-1, 62368-1 |
