Samsung 55″ VHB-E Extreme Narrow Bezel Videowall Display

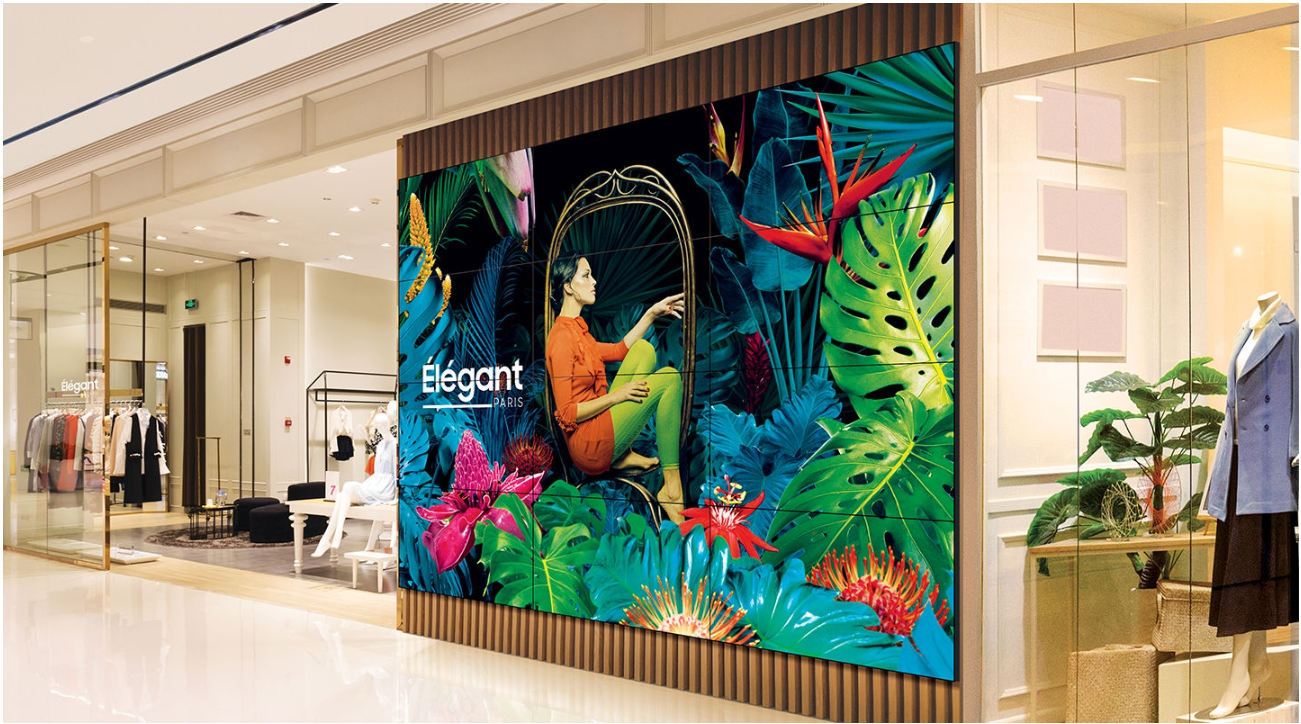

See an immersive and dependable viewing experience, 24/7 with Samsung’s VHB-E series. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.
Product Specifications
Display | |
Diagonal Size | 55″ |
Panel Type | IPS |
Resolution | 1,920 x 1,080 |
Pixel Pitch (HxV) | 0.63×0.63 |
Brightness (Typ) | MAX 700 nit |
Contrast Ratio | 1,000:1 |
Viewing Angle (Horizontal/Vertical) | 178/178 |
Response Time | 8ms |
Colour Gamut | 72 % |
Glass Haze | 0.28 % |
H-Scanning Frequency | 57.3kHz ~ 70kHz |
Maximum Pixel Frequency | 78MHz |
V-Scanning Frequency | 47Hz ~ 63Hz |
Contrast Ratio (Dynamic) | 140,000:1 |
Operation Time Support | 24/7 |
Connectivity | |
HDMI In | 2 |
DP In | 1 |
DVI In | 1 |
Version of HDMI | 2 |
Version of DP | 1.2 |
Version of HDCP | 2.2 |
USB | 1 |
IR In | Yes |
Audio In | Yes |
Audio Out | Stereo Mini Jack |
Video Out | Yes |
Video Out | No |
RS232 In | Yes |
RS232 Out | Stereo Mini Jack |
RJ45 In | Yes |
WiFi | No |
Power | |
Power Supply | AC100-240V 50/60Hz |
Power Consumption (On Mode) | 250 W |
Power Consumption (Sleep Mode) | 0.5 W |
Dimension | |
Set Dimension (WxHxD) | 1212.2 x 683.0 x 70.4 mm |
Package Dimension (WxHxD) | 1398 x 844 x 257 mm |
Weight | |
Set Weight with Stand | 19.5 kg |
Package Weight | 28.6 kg |
Operation Conditions | |
Temperature | 0℃~ 40℃ |
Humidity | 10 ~ 90% |
Mechanical Specification | |
VESA Mount | 600 x 400 mm |
Bezel Width | B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A : 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B) |
Frame Material | Glossy |
Eco | |
Energy Efficiency Class | G |
