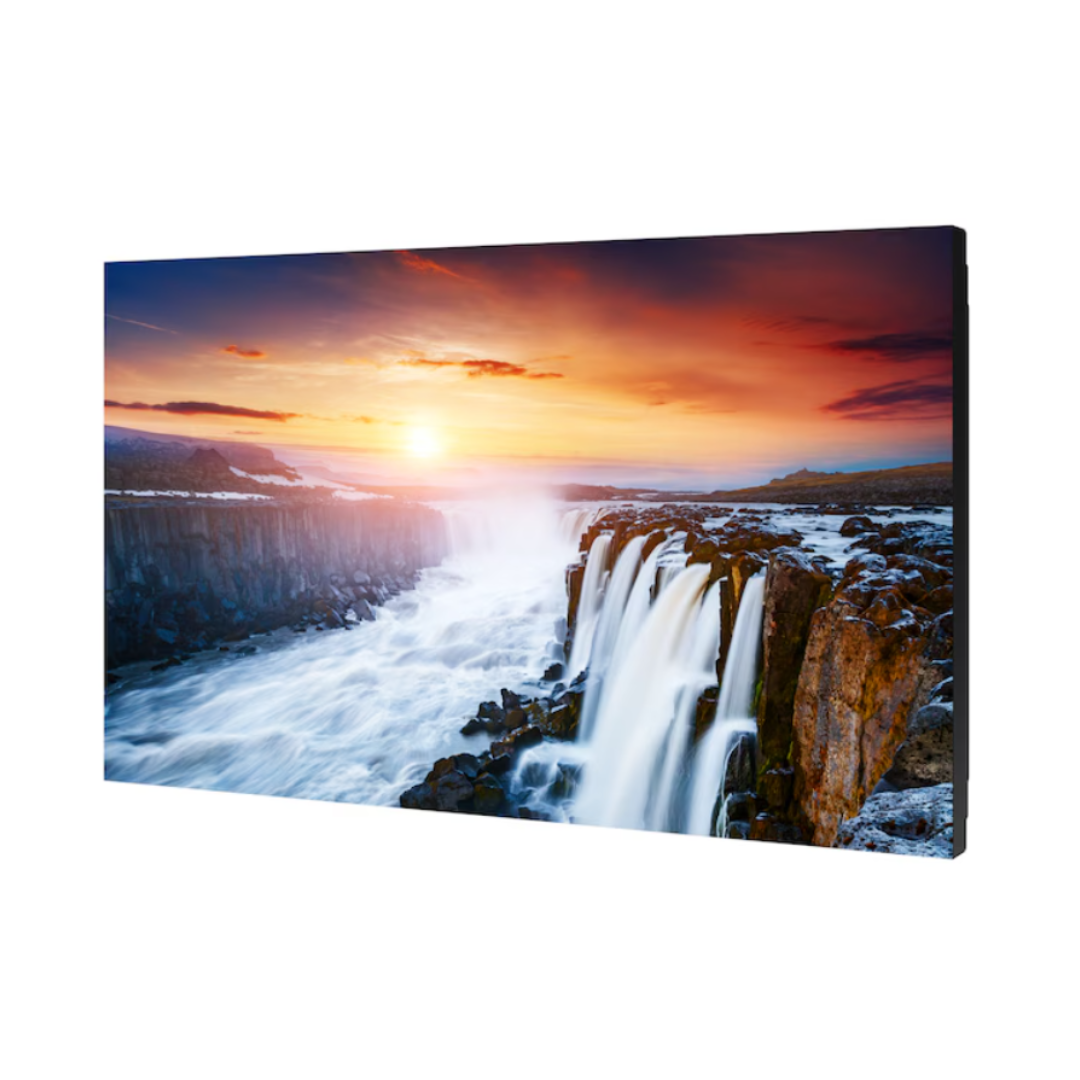

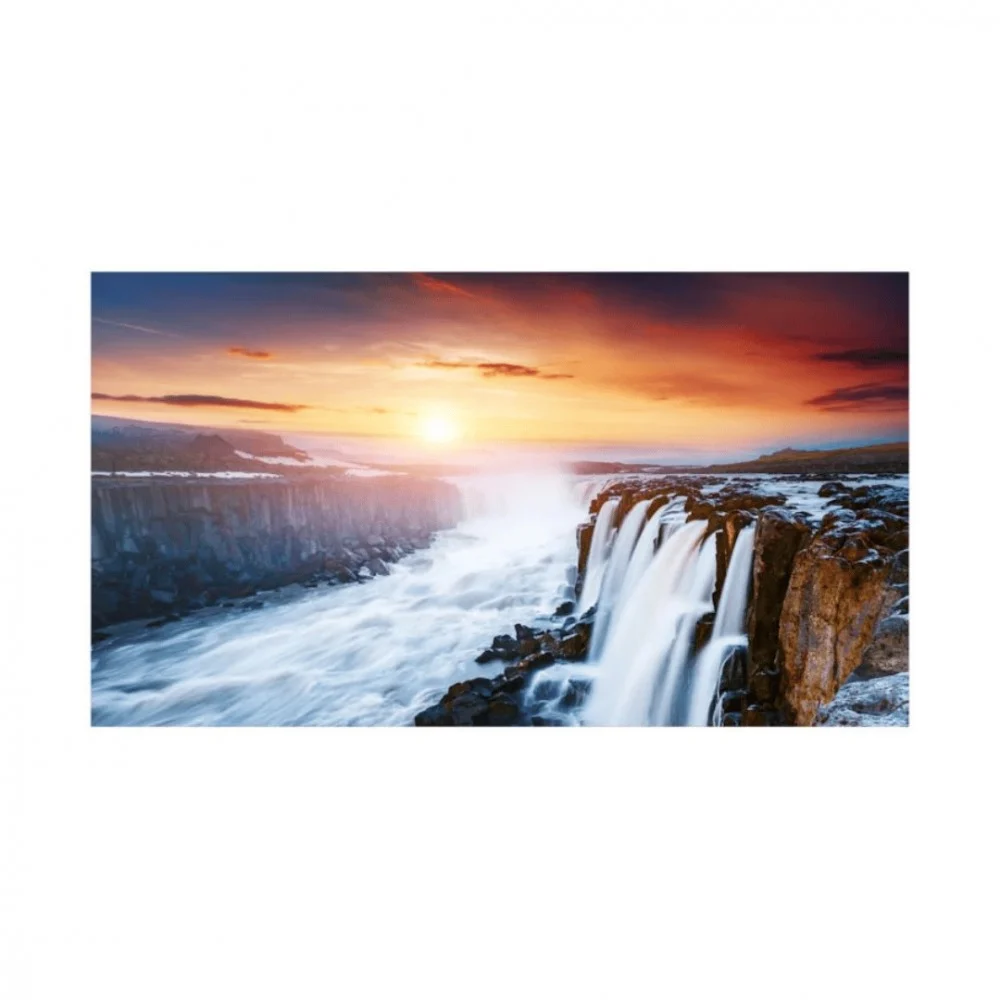

Samsung 55″ VHC-R Razor Narrow Bezel Video Wall Display
With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.
- An extreme narrow 0.8 mm bezel-to-bezel design creates seamless visual experience.
- 700 nit brightness and non-glare panel provide high visibility 24/7.
- Wide viewing angles enable clear image presentation for more viewers in large spaces.
- Picture enhancement technology delivers optimized visuals.
Product Specifications
Display | |
Diagonal Size | 55″ |
Panel Type | IPS |
Resolution | 1,920 x 1,080 |
Pixel Pitch (HxV) | 0.63×0.63 |
Brightness (Typ) | MAX 700 nit |
Contrast Ratio | 1,100:1 |
Viewing Angle (Horizontal/Vertical) | 178/178 |
Response Time | 8ms |
Colour Gamut | 72 % |
Glass Haze | 28 % |
H-Scanning Frequency | 57.3kHz ~ 70kHz |
Maximum Pixel Frequency | 78MHz |
V-Scanning Frequency | 47Hz ~ 63Hz |
Contrast Ratio (Dynamic) | 140,000:1 |
Operation Time Support | 24/7 |
Connectivity | |
HDMI In | 2 |
DP In | 1 |
DVI In | 1 |
Version of HDMI | 2 |
Version of DP | 1.2 |
Version of HDCP | 2.2 |
USB | 1 |
IR In | Yes |
Audio In | Yes |
Audio Out | Stereo Mini Jack |
Video Out | Yes |
Video Out | No |
RS232 In | Yes |
RS232 Out | Stereo Mini Jack |
RJ45 In | Yes |
WiFi | No |
Power | |
Power Supply | AC100-240V 50/60Hz |
Power Consumption (On Mode) | 250 W |
Power Consumption (Sleep Mode) | 0.5 W |
Dimension | |
Set Dimension (WxHxD) | 1211.0 x 681.7 x 69.9 mm |
Package Dimension (WxHxD) | 1414.0 x 844.0 x 257.0 mm |
Weight | |
Set Weight | 16.8 kg |
Package Weight | 25.1 kg |
Operation Conditions | |
Temperature | 0℃~ 40℃ |
Humidity | 10 ~ 90% |
Mechanical Specification | |
VESA Mount | 600 x 400 mm |
Bezel Width | 0.44 (even) |
Bezel Color | Black |
Frame Material | Glossy |
Eco | |
Energy Efficiency Class | G |
Certification and Compliance | |
EMC | FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438 |
Safety | CB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Korea) : K 60950-1EAC (Russia) : EAC+IEC60950-1 BSMI (Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC62368-1/AS/NZS 62368-1 UL (USA) : cUL62368-1 CSA (Canada) : cUL |
