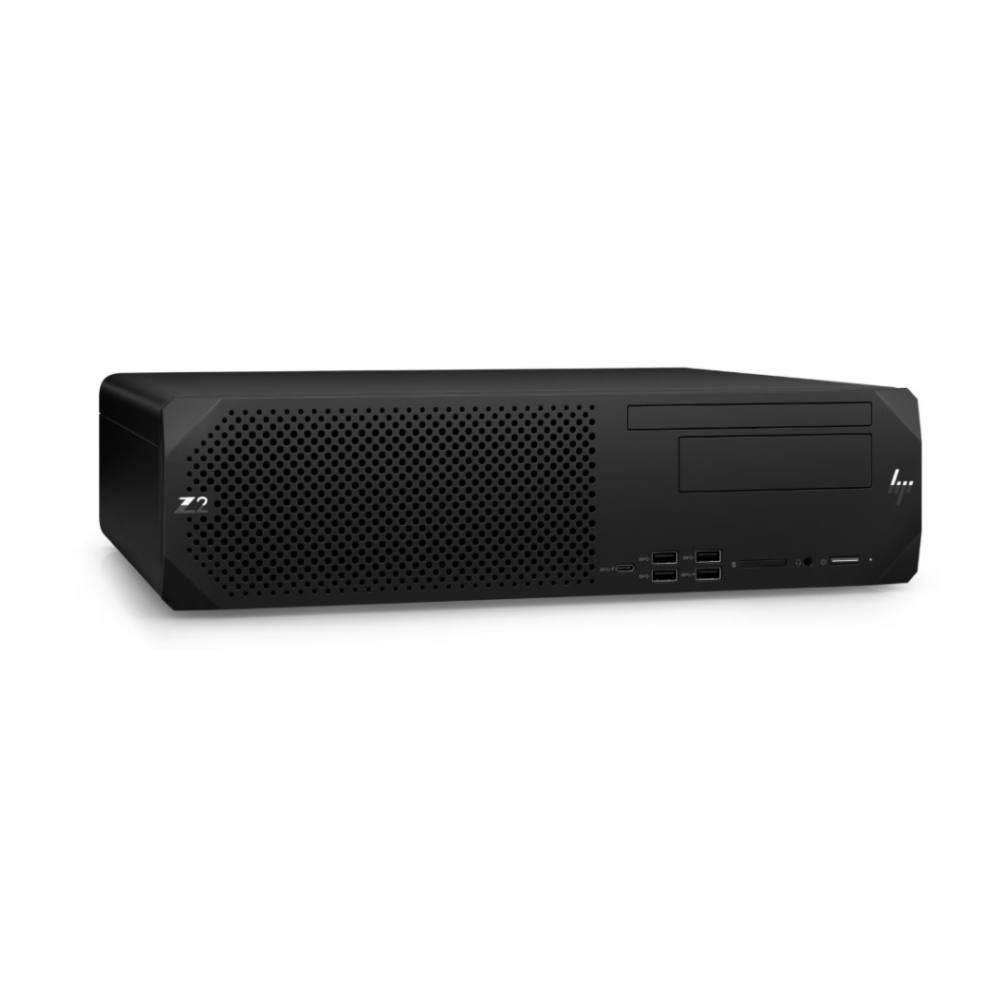

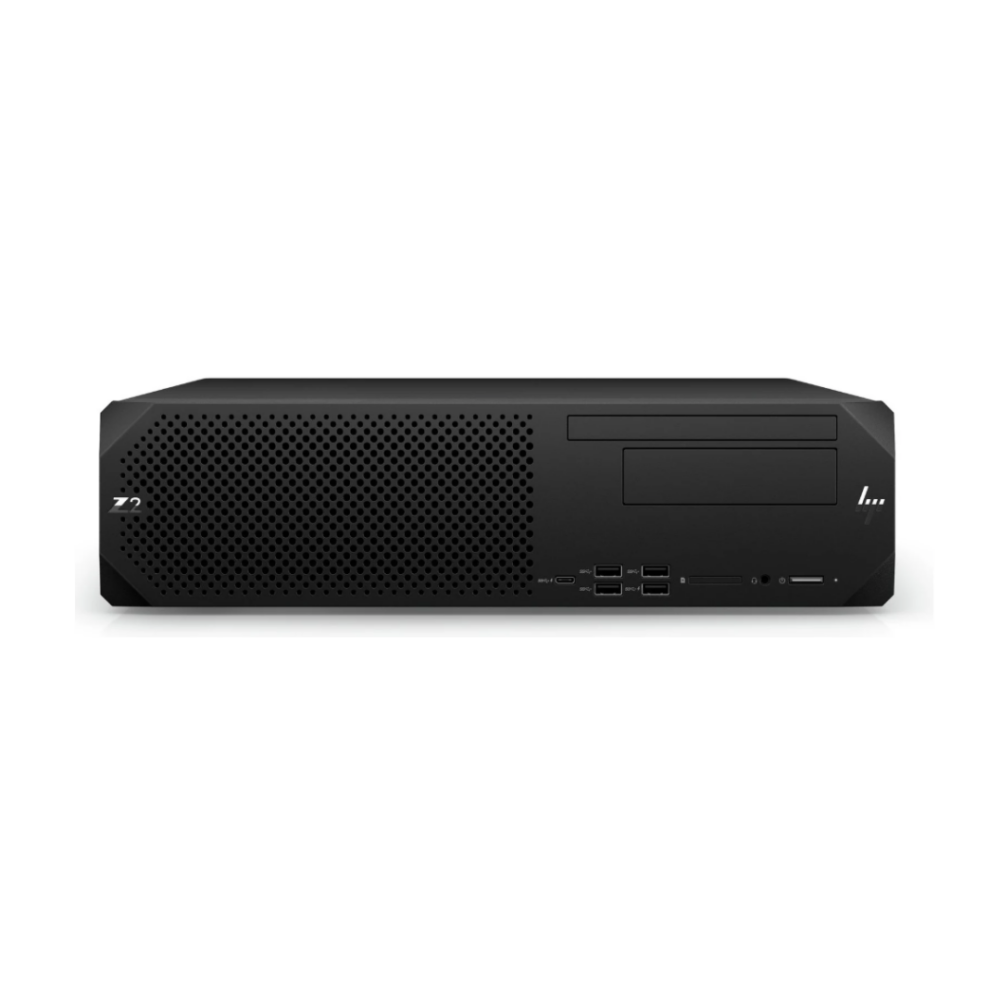

HP Z2 G9 SFF Workstation
With the Z2 SFF Workstation you can design, simulate, and even real-time ray trace without overheating or slow downs. Designed for space-saving purposes, this Workstation is ideal for compact workspaces.
| Processor | Intel® Core™ i7-14700 (up to 5.4 GHz with Intel® Turbo Boost Technology, 33 MB L3 cache, 20 cores, 28 threads) |
| Memory | 16 GB DDR5-4800 MT/s (1 x 16 GB) |
| Storage | 512 GB PCIe® Gen4 NVMe™ M.2 SSD |
| External drive bays | One 3.5″ HDD One slim ODD |
| Internal drive bays | Two M.2 NVME 2280 SSDOne 2.5″ HDD One 3.5″ HDD Three M.2 NVME 2280 SSD |
| Storage controller | Integrated SATA (4 ports 6 Gb/s) with integrated RAID 0, 1, for PCIe SSDs supported. Requires identical hard drives (speeds, capacity, interface). |
| Graphics (integrated) | Intel® UHD Graphics 770 |
| Graphics (discrete) | NVIDIA® T1000 (8 GB GDDR6 dedicated) |
| Operating system | Windows 11 Pro |
| Weight | Starting at 5 kg |

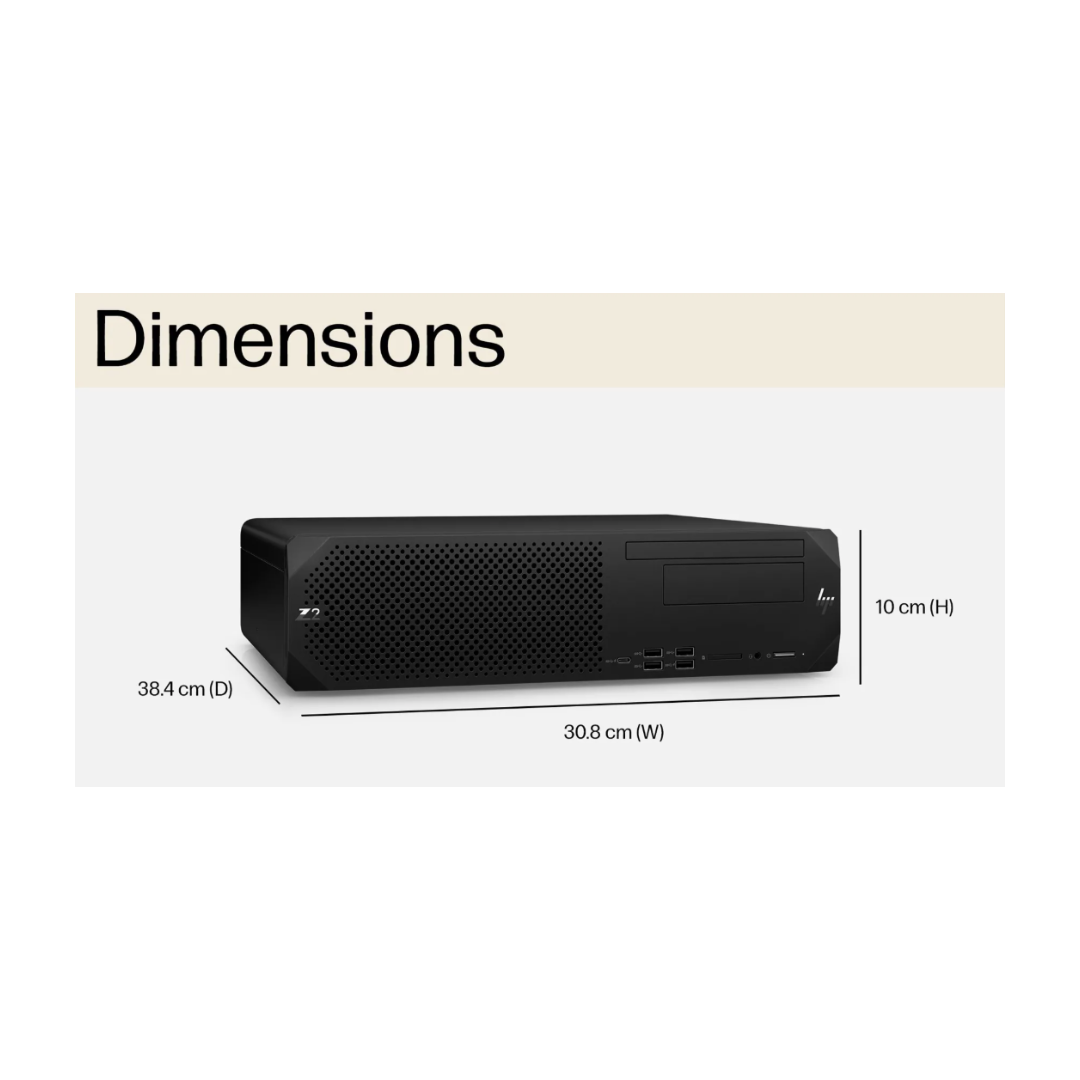

| Dimensions (W x D x H) | 38.4 x 30.8 x 10 cm |
| Audio | Realtek ALC3252 |
| Expansion slots | 1 x half-height PCle 4 x16 1 x half-height PCle 3 x4 1 x half-height PCle 3 x4 (x16 connector) 1 x half-height PCle 3 x1 1 x full-height PCle 4 x16 1 x full-height PCle 4 x16 (x16 connector) |
| Expansion slots note | 1 xM.2 2230 slot for WLAN and 3 x M.2 2280 slots for storage |
| Ports | Front
1 x SuperSpeed USB Type-C® 20Gbps signalling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge) |
| Rear
3 x USB Type-A 5Gbps signalling rate
2 x DisplayPort™ 1.4 1 x RJ-45 1 x audio-in 1 x audio-out 1 x HP Fibre NIC Port Flex IO 3 x USB Type-A 480Mbps signalling rate 1 x USB 3.1 Gen 2 Type-C™
|
|
| Network interface | Intel® I219-LM GbE |
